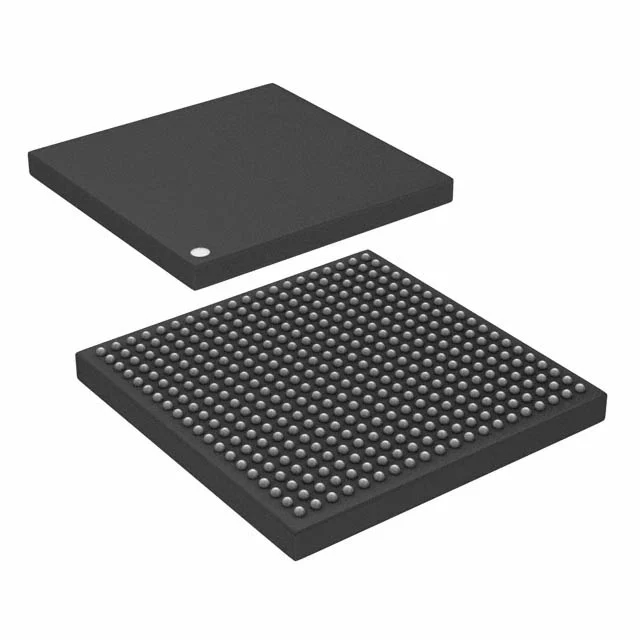

MCIMX353CJQ5C

Product Overview

The MCIMX353CJQ5C from NXP USA Inc. is an embedded microprocessor in the i.MX35 series. It combines a single-core, 32-bit ARM1136JF-S processor operating at 532 MHz with integrated multimedia, graphics, display, networking, and peripheral interfaces. The device supports LPDDR and DDR2 memory controllers, provides graphics acceleration, and includes a GPU, IPU, and VFP co-processing block. The device is packaged in a 400-LFBGA (17 x 17) surface-mount package and operates over an ambient temperature range of -40°C to 85°C TA. I/O voltage values include 1.8 V, 2.0 V, 2.5 V, 2.7 V, 3.0 V, and 3.3 V. Security-related features include a secure fusebox, secure JTAG, and tamper detection.

Key Features

• Single-core 32-bit ARM1136JF-S processor with a 532 MHz operating speed.
• Integrated multimedia subsystem with GPU, IPU, and VFP co-processors.
• Memory support through LPDDR and DDR2 RAM controllers.
• Graphics acceleration with Keypad, KPP, and LCD interface controllers.
• Connectivity includes one 10/100 Mbps Ethernet interface and two USB 2.0 + PHY interfaces.
• Additional interfaces include 1-Wire, ASRC, ATA, CAN, I2C, I2S, MMC/SDIO, SAI, SPI, SSI, and UART.
• Security features include Secure Fusebox, Secure JTAG, and Tamper Detection.
• 400-LFBGA (17 x 17) surface-mount package.
• I/O voltage support at 1.8 V, 2.0 V, 2.5 V, 2.7 V, 3.0 V, and 3.3 V.
• Operating temperature range of -40°C to 85°C TA.

Applications

• Embedded control systems that require an LCD display and keypad interface.
• Multimedia terminals or kiosks that use graphics acceleration, USB 2.0 peripherals, and memory subsystems.
• Networked equipment controllers that use 10/100 Mbps Ethernet for local communication.
• CAN-based and serial-peripheral embedded designs that combine UART, SPI, I2C, and MMC/SDIO interfaces.

Design & Procurement Notes

When selecting this microprocessor, plan the board for the 400-LFBGA (17 x 17) surface-mount package and verify that the system power architecture can provide the required I/O voltage domains. Memory design should match either LPDDR or DDR2 controller support. The integrated Ethernet, USB, display, keypad, and additional serial interfaces should be mapped to the application's electrical and mechanical requirements. The Secure Fusebox, Secure JTAG, and Tamper Detection features should be considered where debug control and physical tamper awareness are important. The -40°C to 85°C TA range should be checked against the expected ambient conditions of the final product.
