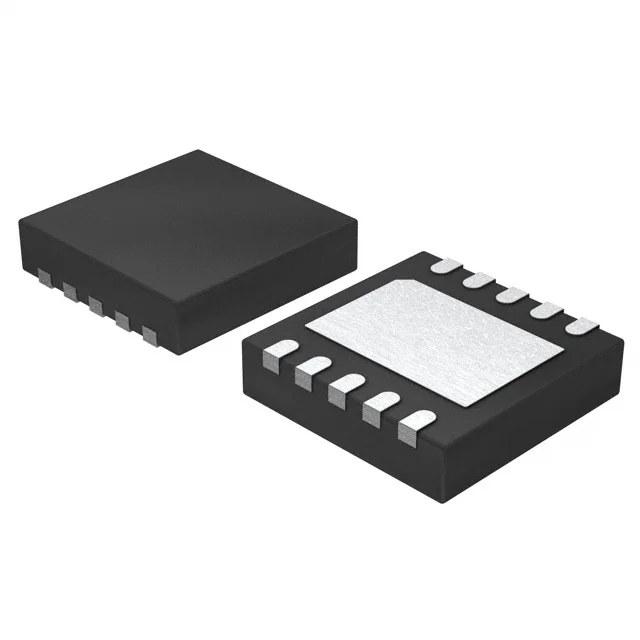

TH72035KLD-BAA-000-RE
RF TX IC ASK 868/915MHZ 10VFDFN
- ПРОИЗВОДИТЕЛЬ
- Melexis Technologies NV
- КАТЕГОРИЯ ТОВАРА
- RF-передатчики
- Корпус
- 10-VFDFN Exposed Pad
- Склад
- 1,142 шт.
- Наличие
- Текущее количество требует подтверждения.
Характеристики товара
| ПРОИЗВОДИТЕЛЬ | Melexis Technologies NV |
|---|---|
| КАТЕГОРИЯ ТОВАРА | RF-передатчики |
| Antenna Connector | PCB, Surface Mount |
| Applications | Alarm and Security Systems, RKE, TPMS |
| Current - Transmitting | 5.1mA ~ 13.4mA |
| Data Interface | PCB, Surface Mount |
| Data Rate (Max) | 40kbps |
| Frequency | 868MHz, 915MHz |
| Min Qty | 0 |
| Modulation or Protocol | ASK, FSK |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Package | Tape & Reel (TR) |
| Power - Output | -12dBm ~ 9.5dBm |
| Product status | Obsolete |
| Supplier Device Package | 10-DFN (3x3) |
| Voltage - Supply | 1.95V ~ 5.5V |
| Техническая документация | Открыть техническую документацию PDF |
Сводка по закупке
Основная информация о поставке и закупке для TH72035KLD-BAA-000-RE.
Почему выбирают Antrex Electronics?
Независимая дистрибьюторская поддержка для проверенных закупок, инспекции и международных требований к поставкам.
Поддержка независимого дистрибьютора
Поиск дефицитных, снятых с производства и труднодоступных компонентов для производственных и закупочных задач.
Проверка прослеживаемости
До подтверждения заказа можно проверить этикетку, партию, дату производства и доступную документацию по цепочке поставок.
Инспекция и тестирование
При необходимости можно организовать визуальную проверку, рентген и тестирование третьей стороной.
Глобальная поддержка закупок
Поддержка международных закупок для OEM, EMS и дистрибьюторов — от отдельных компонентов до BOM-проектов.
Сертификация и поддержка проверки
Контроль качества, проверка прослеживаемости и инспекционная поддержка для закупок электронных компонентов.
Подробное описание TH72035KLD-BAA-000-RE
Product Overview
TH72035KLD-BAA-000-RE is a ASK/OOK RF transmitter IC from Melexis Technologies NV, organized under Semiconductors / RF and Wireless / RF Transmitters. It is intended for generating or modulating RF signals in wireless transmitters, remote-control systems, telemetry equipment, RFID/RKE designs, low-power sensor nodes or other embedded radio products. The reviewed product data indicates that the product data references an operating frequency range of 868 / 915 MHZ bands, the modulation or band reference includes ASK, the package reference is 10-VFDFN Exposed Pad. Melexis RF transmitter parts are commonly reviewed in automotive, RFID, sensor and remote-keyless-entry related designs. Buyers should verify the full datasheet, output-power setting, data interface, reference clock, antenna matching network, package drawing, marking and ordering suffix before production use or replacement approval.
Key Features
- Manufacturer: Melexis Technologies NV
- Part Number: TH72035KLD-BAA-000-RE
- Product Category: Semiconductors / RF and Wireless / RF Transmitters
- Device Type: ASK/OOK RF transmitter IC
- Product Description: TH72035KLD-BAA-000-RE is an ASK/OOK RF transmitter IC with 868 / 915 MHZ bands, ASK reference, 10-VFDFN Exposed Pad, surface-mount IC package for PCB assembly, intended for low-power sub-GHz wireless transmission and simple data-link applications.
- Frequency Range: 868 / 915 MHZ bands
- Modulation / Band Reference: ASK
- Package / Case: 10-VFDFN Exposed Pad
- Mounting / Construction: surface-mount IC package for PCB assembly
- Application Band Reference: sub-GHz ISM, remote control, telemetry, alarm, smart-metering and RKE transmitter designs
- Functional Role: RF signal generation, transmitter modulation and wireless data-link transmission
- Sourcing Description: RF TX IC ASK 868/915MHz 10Vfdfn
Applications
TH72035KLD-BAA-000-RE can be used in sub-GHz ISM transmitters, remote-control devices, wireless sensors, metering equipment, alarm systems, garage-door controllers, smart-home products, telemetry links and low-power embedded RF equipment. Design review should include output power, frequency band, modulation mode, matching network, reference clock, supply voltage and local RF compliance requirements.
Quality & Sourcing
Antrex Electronics can support TH72035KLD-BAA-000-RE sourcing with stock availability checks, RFQ quotation, package confirmation, date code review and shipment arrangement. For RF transmitter purchasing, buyers can provide quantity, target price, acceptable date code, packaging preference, frequency band, modulation requirement, output-power requirement and application information for faster quotation support. Antrex Electronics can also help arrange product photos, label review, visual inspection and third-party testing support when required. OEMs, EMS providers, RF module manufacturers, repair centers and electronic component buyers are welcome to send BOM lists or hard-to-find RF transmitter IC requests for sourcing assistance.
