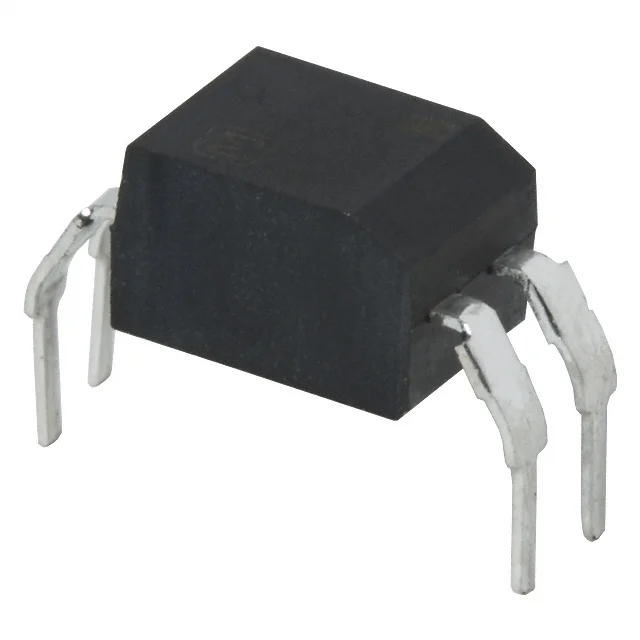

TCET1102
OPTOISOLATR 5KV TRANSISTOR 4-DIP
- Manufacturer
- Vishay Semiconductor Opto Division
- Product Category
- Optocouplers / Photocouplers
- Package
- 4-DIP (0.300", 7.62mm)
- Stock
- 3,970 pcs
- Availability
- Current quantity subject to confirmation.
Product Attributes
| Manufacturer | Vishay Semiconductor Opto Division |
|---|---|
| Product Category | Optocouplers / Photocouplers |
| Current - DC Forward (If) (Max) | 60 mA |
| Current - Output / Channel | 50mA |
| Current Transfer Ratio (Max) | 125% @ 10mA |
| Current Transfer Ratio (Min) | 63% @ 10mA |
| Input Type | DC |
| Min Qty | 1 |
| Mounting Type | Through Hole |
| Number of Channels | 1 |
| Operating Temperature | -40°C ~ 100°C |
| Output Type | Transistor |
| Package | Tube |
| Product status | Active |
| Rise / Fall Time (Typ) | 3µs, 4.7µs |
| Supplier Device Package | 4-DIP |
| Turn On / Turn Off Time (Typ) | 6µs, 5µs |
| Vce Saturation (Max) | 300mV |
| Voltage - Forward (Vf) (Typ) | 1.25V |
| Voltage - Isolation | 5000Vrms |
| Voltage - Output (Max) | 70V |
| Datasheet | View Datasheet PDF |
