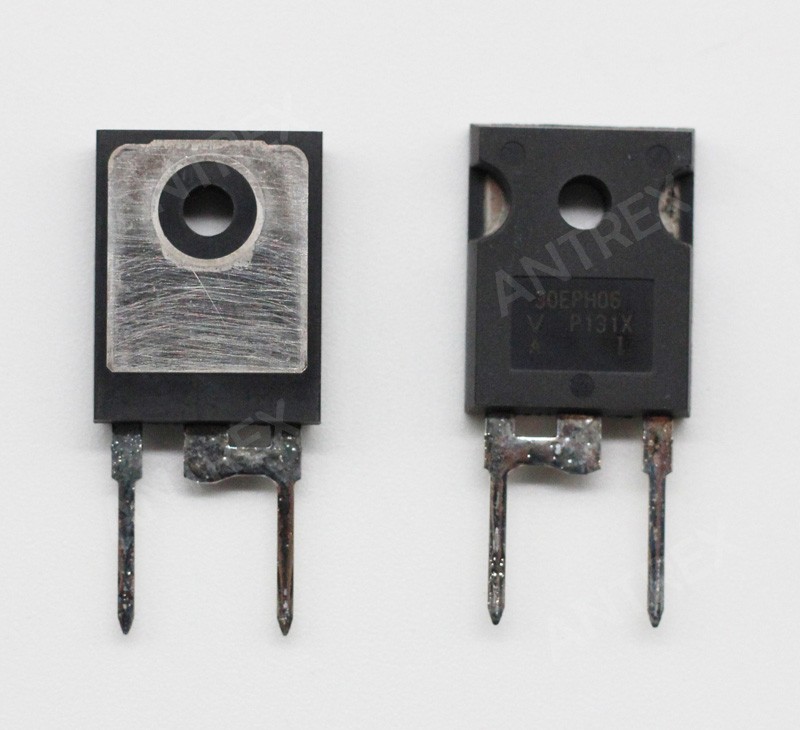

30EPH06PBF
600V 30A ultra-fast recovery rectifier diode, TO-247 package, low VF and low reverse loss
Quick Answer: 30EPH06PBF is commonly associated with Vishay / International Rectifier VS-30EPH06PBF, a 30A FRED Pt® hyperfast recovery rectifier diode.
- Manufacturer
- Vishay General Semiconductor - Diodes Division
- Product Category
- Rectifiers
- Package
- TO-247
- Stock
- 1,500 pcs
- Availability
- Current quantity subject to confirmation.
Product Attributes
| Manufacturer | Vishay General Semiconductor - Diodes Division |
|---|---|
| Product Category | Rectifiers |
| Application | SMPS, PFC, inverter, freewheeling diode |
| Average Forward Current (IF(AV)) | 30 A |
| Breakdown Voltage (VRRM) | 600 V |
| Case Temperature | up to 175°C operation |
| Circuit Type | Single Diode |
| Configuration | single rectifier |
| Forward Surge Current (IFSM) | up to 300 A |
| Forward Voltage (VF) | ~2.0–2.6 V @ 30A |
| Junction Temperature | -65°C to +175°C |
| Leakage Current (IR) | up to 50 µA @ 600V |
| Mounting Type | through-hole |
| Package | TO-247AC-2L |
| Reverse Recovery Charge (Qrr) | ~65 nC (25°C typ.) |
| Reverse Recovery Time (trr) | ~28–35 ns |
| Reverse Voltage (VR) | 600 V |
| RoHS Status | compliant (PbF version available) |
| Technology | Hyperfast recovery diode (FRED Pt) |
| Thermal Resistance (RthJC) | ~0.5–0.9 °C/W |
| Type | ultra-fast rectifier diode |
| Weight | ~6 g |
| Datasheet | Request Datasheet |
Procurement Snapshot
Key supply and purchasing information for 30EPH06PBF.
Why Source from Antrex Electronics?
Independent distribution support for verified sourcing, inspection and international procurement requirements.
Independent Distribution Support
Shortage, obsolete and hard-to-find component sourcing for production and procurement requirements.
Traceability Review
Label, lot, date code and available supply-chain documentation can be reviewed before order confirmation.
Inspection & Testing
Visual inspection, X-ray and third-party testing support can be arranged when required.
Global Procurement Support
Support for OEM, EMS, distributors and international sourcing requirements across individual parts and BOM projects.
Credentials & Verification Support
Quality controls, traceability review and inspection support for electronic component sourcing.
Detailed Description for 30EPH06PBF
Product Overview
30EPH06PBF is commonly associated with Vishay / International Rectifier VS-30EPH06PBF, a 30A FRED Pt® hyperfast recovery rectifier diode. The device is designed with optimized forward voltage drop, hyperfast recovery time and soft recovery performance. With a 600V reverse voltage rating, 30A average forward current and TO-247AC through-hole package, it is suitable for PFC boost stages, AC/DC SMPS, inverters, freewheeling diode circuits, industrial power supplies and high-frequency power conversion designs.
Key Features
Manufacturer: Vishay Semiconductors / International Rectifier legacy
Part Number: 30EPH06PBF
Full / Related Part Number: VS-30EPH06PBF
Device Type: Hyperfast recovery rectifier diode
Product Series: FRED Pt® rectifier family
Product Category: Discrete semiconductor / fast recovery rectifier
Reverse Voltage: 600V
Average Forward Current: 30A
Reverse Recovery Time: 35ns class; some legacy datasheets list 28ns typical
Forward Voltage: 2.6V maximum class at 30A
Reverse Leakage Current: 50µA class at 600V
Junction Temperature Range: -65°C to +175°C
Package: TO-247AC / TO-247-2 through-hole package
Mounting Type: Through hole
Key Features: Hyperfast recovery time, soft recovery, low forward voltage drop, low leakage current and single diode construction
Typical Use: PFC boost stage, AC/DC SMPS, inverter circuits, freewheeling diode circuits and high-frequency power conversion
Ordering / Packaging Note: 30EPH06PBF may appear under Vishay, International Rectifier or VS-30EPH06PBF references; buyers should verify the full ordering code, package marking, RoHS/Pb-free suffix, lifecycle status and datasheet revision before production use.
Applications
30EPH06PBF can be used in electronic circuits that require high-speed rectification and low recovery loss. Typical applications include PFC boost circuits in AC/DC power supplies, switching power supplies, industrial inverters, freewheeling diode positions, welding power supplies, UPS systems, motor drive power stages, telecom power supplies, renewable energy power conversion, maintenance projects and repair applications. It is also suitable for BOM review where a 600V / 30A hyperfast recovery rectifier in TO-247AC package is required.
Quality & Sourcing
Antrex Electronics can support 30EPH06PBF sourcing with stock availability checks, RFQ quotation, package confirmation, date code review and shipment arrangement. For project-based purchasing, buyers can provide quantity, target price, required date code, packaging requirements and application information for faster quotation support.
For quality control, Antrex Electronics can help arrange product photos, label review, visual inspection and third-party testing support when required. OEMs, EMS providers, repair centers and electronic component buyers are welcome to send BOM lists or hard-to-find part requests for sourcing assistance.
