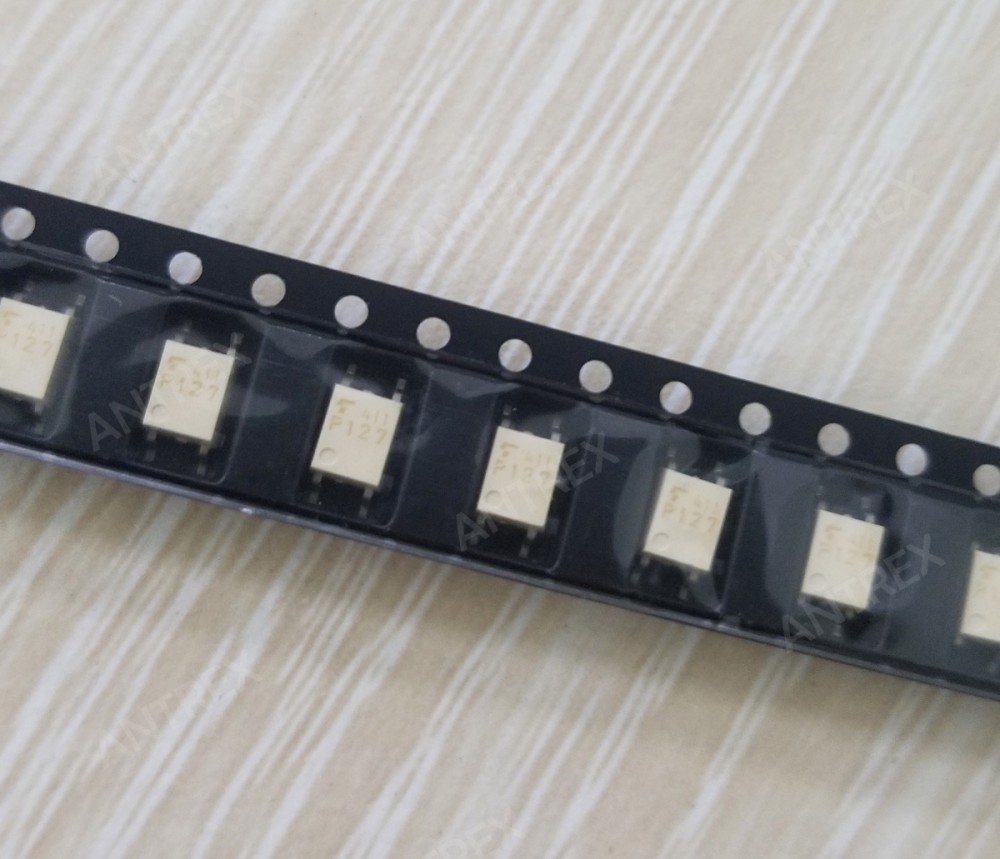

TLP127

Product Overview

TLP127 is a Toshiba high-voltage photocoupler featuring a GaAs infrared LED optically coupled with a Darlington phototransistor output stage. The device provides electrical isolation between input and output circuits, with a high collector-emitter voltage rating of 300V, high current transfer ratio and compact mini-flat package design. TLP127 is suitable for programmable controllers, DC output modules, telecommunications equipment and industrial isolation applications requiring high-voltage switching capability.

Key Features

• Manufacturer: Toshiba Electronic Devices & Storage Corporation

• Part Number: TLP127

• Device Type: Photocoupler / Optocoupler

• Output Type: Darlington Phototransistor Output

• Input Type: Gallium Arsenide Infrared LED

• Number of Channels: 1 Channel

• Collector-Emitter Voltage: 300V minimum

• Collector Current: 150mA maximum

• Current Transfer Ratio (CTR): 1000% minimum

• Isolation Voltage: 2500Vrms minimum

• Isolation Structure: Optical isolation between input and output

• Integrated Feature: Built-in base-emitter resistor

• Forward Current: 50mA maximum

• Recommended Forward Current: 16mA typical

• High Voltage Switching Capability: Supported

• Switching Speed: Microsecond-level response

• Rise Time: Approximately 40μs

• Fall Time: Approximately 15μs

• Safety Standards: UL1577 recognized

• Package Type: Mini-flat 6-pin package

• Mounting Type: Surface Mount

• Operating Temperature Range: -25°C to +85°C

• Weight: Approximately 0.09g

• Application: Electrical isolation and signal transfer

• Typical Applications: PLC systems, industrial controllers, DC output modules, telecom equipment and power control circuits

• Lifecycle Status: Legacy / obsolete product

• Ordering / Packaging Note: Verify suffix options such as TLP127(TPL,F), package marking, date code and authenticity before procurement.

Applications

TLP127 is designed for industrial and electronic systems requiring reliable isolation and high-voltage transistor switching. Typical applications include programmable logic controllers (PLC), industrial automation equipment, DC interface modules, telecommunications equipment, power supply feedback circuits and replacement applications for legacy control boards.

Quality & Sourcing

Antrex Electronics can support TLP127 sourcing with stock verification, RFQ quotation, manufacturer confirmation, package inspection, date code review and shipment arrangement. As a legacy Toshiba photocoupler, customers should confirm package type, suffix code and electrical specifications before procurement.

Quality support can include marking inspection, visual inspection, electrical testing coordination and third-party verification when required. OEM manufacturers, industrial equipment suppliers, repair centers and electronic component buyers are welcome to submit sourcing requests for TLP127 and other optocoupler components.
