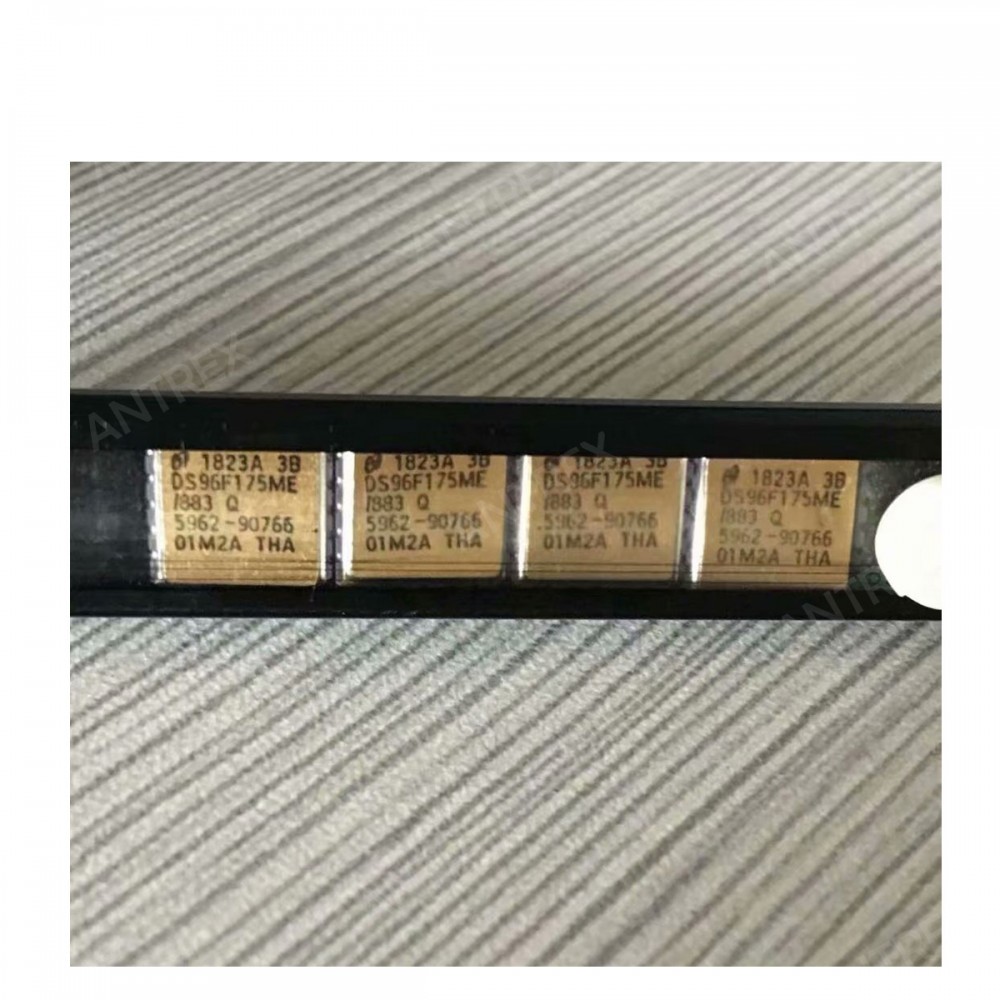

DS96F175ME/883Q

Product Overview

DS96F175ME_883Q is a Texas Instruments (TI) radiation-tolerant military-grade quad differential receiver designed for EIA-485/EIA-422 balanced digital communication systems. The device integrates four differential line receiver channels with high noise immunity, wide common-mode voltage range and reliable operation over extended temperature ranges. Supplied in a ceramic LCCC package, it is suitable for aerospace, military, avionics, industrial communication systems and high-reliability data transmission applications.

Key Features

• Manufacturer: Texas Instruments (Originally National Semiconductor)

• Part Number: DS96F175ME/883Q

• Device Type: Quad Differential Line Receiver

• Product Category: Interface IC / Communication Transceiver

• Communication Standard: EIA-485 / EIA-422 Compatible

• Number of Receiver Channels: 4 Channels

• Input Type: Differential Line Input

• Output Type: TTL Compatible Logic Output

• Data Rate: Up to 15Mbps

• Supply Voltage: 5V Typical

• Supply Voltage Range: Approximately 4.5V to 5.5V

• Common Mode Input Range: Supports Wide Differential Communication Environments

• Input Sensitivity: High Noise Immunity Differential Receiver Design

• Propagation Delay: Designed for High-Speed Data Communication

• Operating Temperature Range: -55°C to +125°C

• Qualification: Military / Aerospace Grade

• Package Type: Ceramic LCCC (Leadless Ceramic Chip Carrier)

• Package Size: LCCC-20

• Pin Count: 20 Pins

• Mounting Type: Surface Mount

• Reliability Level: MIL-Spec Qualified Component

• Typical Applications: Military Communication Systems, Avionics, Industrial Networks and High-Reliability Data Links

• Product Status: Active / Legacy Military Component

• Ordering / Packaging Note: Buyers should verify complete ordering code, military screening level, package type, date code, lot traceability and application requirements before production use.

Applications

DS96F175ME_883Q is designed for reliable differential communication interfaces in harsh environments. Typical applications include military communication equipment, avionics systems, radar and navigation systems, industrial control networks, remote data acquisition systems, test equipment and legacy defense electronics requiring EIA-422/EIA-485 receiver functionality.

Quality & Sourcing

Antrex Electronics can support DS96F175ME_883Q sourcing with stock availability checks, RFQ quotation, manufacturer verification, package confirmation, date code review and shipment arrangement. For military and aerospace purchasing projects, buyers can provide required screening level, inspection standards, traceability requirements, target price and application information for faster quotation support.

For quality control, Antrex Electronics can help arrange product photos, marking review, visual inspection, package inspection, authenticity verification and third-party testing support when required. Aerospace suppliers, defense contractors, OEMs, EMS providers, repair centers and electronic component buyers are welcome to send BOM lists or hard-to-find military IC requests for sourcing assistance.

Datasheet

       Download DS96F175ME_883Q Datasheet PDF
