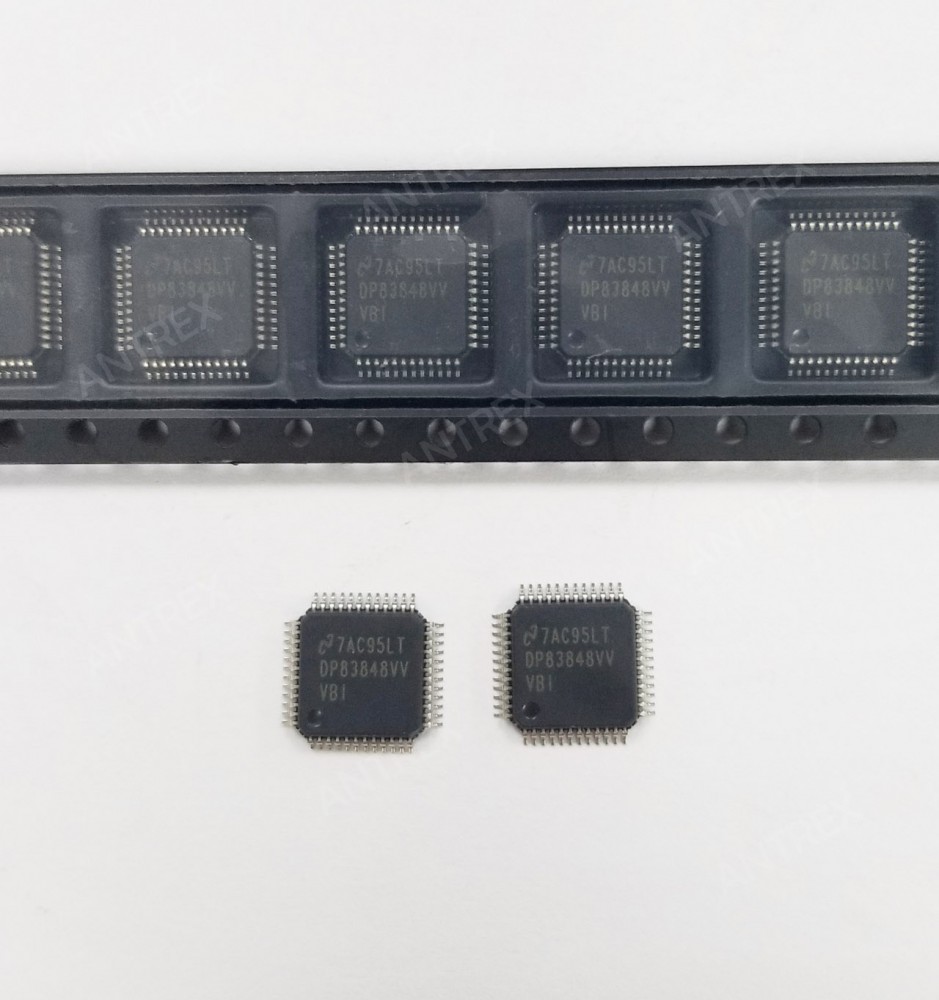

DP83848VV
The DP83848VV is a low-power single-port 10/100 Mbps Ethernet PHY transceiver with MII/RMII support for industrial and embedded networking applications
Quick Answer: DP83848VV is a Texas Instruments (originally National Semiconductor) PHYTER™ single-port 10/100 Mbps Ethernet physical layer transceiver designed for embedded networking applications.
- Manufacturer
- Texas Instruments
- Product Category
- Buffers, Drivers, Receivers, Transceivers
- Package
- LQFP-48
- Stock
- 1,500 pcs
- Availability
- Current quantity subject to confirmation.
Product Attributes
| Manufacturer | Texas Instruments |
|---|---|
| Product Category | Buffers, Drivers, Receivers, Transceivers |
| Applications | Industrial Ethernet, Embedded Systems, Network Equipment, Automation Control |
| Auto-Negotiation | Supported |
| Clock Source | 25 MHz Crystal or Oscillator |
| Data Rate | 10 Mbps / 100 Mbps |
| Duplex Mode | Half Duplex / Full Duplex |
| ESD Protection | Integrated ESD Protection |
| I/O voltage | 3.3 V |
| Interface | MII / RMII / SNI |
| LED Indicators | 3 LED Support |
| Management Interface | Serial Management Interface (MDIO/MDC) |
| Manufacturer | Texas Instruments |
| Model | DP83848VV |
| Mounting Type | Surface Mount |
| Network Standard | IEEE 802.3 Compatible |
| Operating Temperature | 0°C to +70°C |
| Package Type | LQFP-48 |
| PHY Technology | PHYTER™ Ethernet Transceiver |
| Port Configuration | Single Port |
| Product Type | Ethernet Physical Layer Transceiver (PHY) |
| Supply Voltage | 3.3 V |
| Datasheet | View Datasheet PDF |
Procurement Snapshot
Key supply and purchasing information for DP83848VV.
Why Source from Antrex Electronics?
Independent distribution support for verified sourcing, inspection and international procurement requirements.
Independent Distribution Support
Shortage, obsolete and hard-to-find component sourcing for production and procurement requirements.
Traceability Review
Label, lot, date code and available supply-chain documentation can be reviewed before order confirmation.
Inspection & Testing
Visual inspection, X-ray and third-party testing support can be arranged when required.
Global Procurement Support
Support for OEM, EMS, distributors and international sourcing requirements across individual parts and BOM projects.
Credentials & Verification Support
Quality controls, traceability review and inspection support for electronic component sourcing.
Detailed Description for DP83848VV
Product Overview
DP83848VV is a Texas Instruments (originally National Semiconductor) PHYTER™ single-port 10/100 Mbps Ethernet physical layer transceiver designed for embedded networking applications. The device integrates IEEE 802.3-compliant 10BASE-T and 100BASE-TX Ethernet PHY functions, supports MII interface connectivity, and is supplied in a 48-pin LQFP package. With low power consumption, robust link diagnostics and flexible MAC interface support, it is widely used in industrial Ethernet equipment, embedded controllers, communication systems and network-enabled devices. The DP83848VV marking corresponds to the DP83848CVV commercial temperature version with LQFP-48 package.
Key Features
Manufacturer: Texas Instruments (TI) / National Semiconductor
Part Number: DP83848VV
Device Type: Ethernet Physical Layer Transceiver (PHY)
Product Category: Communication Interface IC
Ethernet Standard: IEEE 802.3 10BASE-T / 100BASE-TX
Data Rate: 10Mbps / 100Mbps
Interface: MII (Media Independent Interface)
MAC Interface: Supports Connection to Ethernet MAC Controllers
Integrated Functions: Physical Layer Ethernet Transceiver
Auto-Negotiation: Supports Automatic Speed and Duplex Negotiation
Duplex Mode: Half Duplex and Full Duplex Operation
Supply Voltage: 3.3V Digital Supply
Power Consumption: Low-Power Ethernet PHY Design
Diagnostic Features: Link Status, Cable Diagnostics and Loopback Support
Clock Support: 25MHz Crystal or External Clock Source
Package Type: LQFP
Pin Count: 48 Pins
Mounting Type: Surface Mount
Operating Temperature Range: 0°C to +70°C (DP83848CVV Commercial Grade)
Industrial Version: DP83848IVV Available for -40°C to +85°C Operation
Compliance: IEEE 802.3 Ethernet Compatible
Typical Applications: Embedded Ethernet, Industrial Networking, Automation Systems and Communication Equipment
Ordering / Packaging Note: Buyers should verify exact suffix, temperature grade, package marking, interface requirements and PHY configuration before production use.
Applications
DP83848VV is designed for embedded systems requiring reliable Ethernet connectivity. Typical applications include industrial Ethernet controllers, PLC systems, factory automation equipment, network communication modules, medical equipment, test instruments, smart devices, embedded Linux systems and legacy Ethernet hardware replacement projects.
