4-794681-4

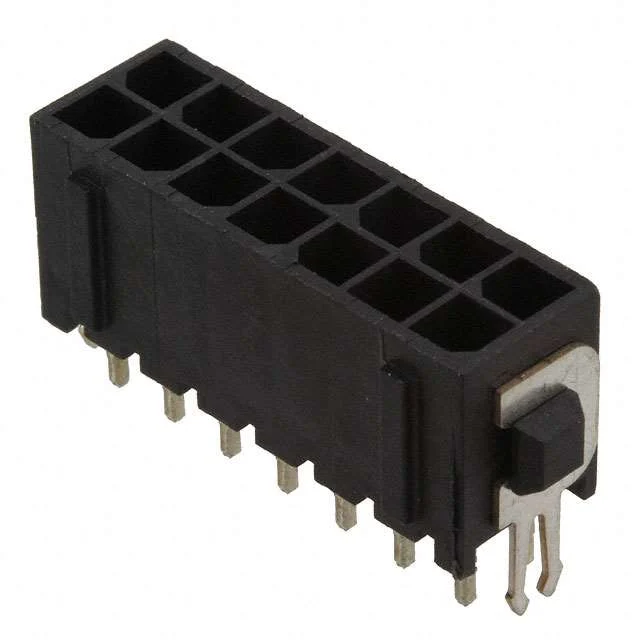

CONN HEADER VERT 14POS 3MM
- Manufacturer
- TE Connectivity AMP Connectors
- Product Category
- Headers, Male Pins
- Package
- -
- Stock
- 995 pcs
- Availability
- Current quantity subject to confirmation.
Product Attributes
| Manufacturer | TE Connectivity AMP Connectors |
|---|---|
| Product Category | Headers, Male Pins |
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Length - Post | 0.125" (3.18mm) |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge |
| Fastening Type | Locking Ramp |
| Features | Board Lock |
| Insulation Color | Black |
| Insulation Height | 0.364" (9.25mm) |
| Insulation Material | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Min Qty | 1573 |
| Mounting Type | Through Hole |
| Number of Positions | 14 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature | -40°C ~ 105°C |
| Package | Tray |
| Pitch - Mating | 0.118" (3.00mm) |
| Product status | Obsolete |
| Row Spacing - Mating | 0.118" (3.00mm) |
| Series | Micro MATE-N-LOK |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250V |
| Datasheet | View Datasheet PDF |
