P10NK80Z

Product Overview

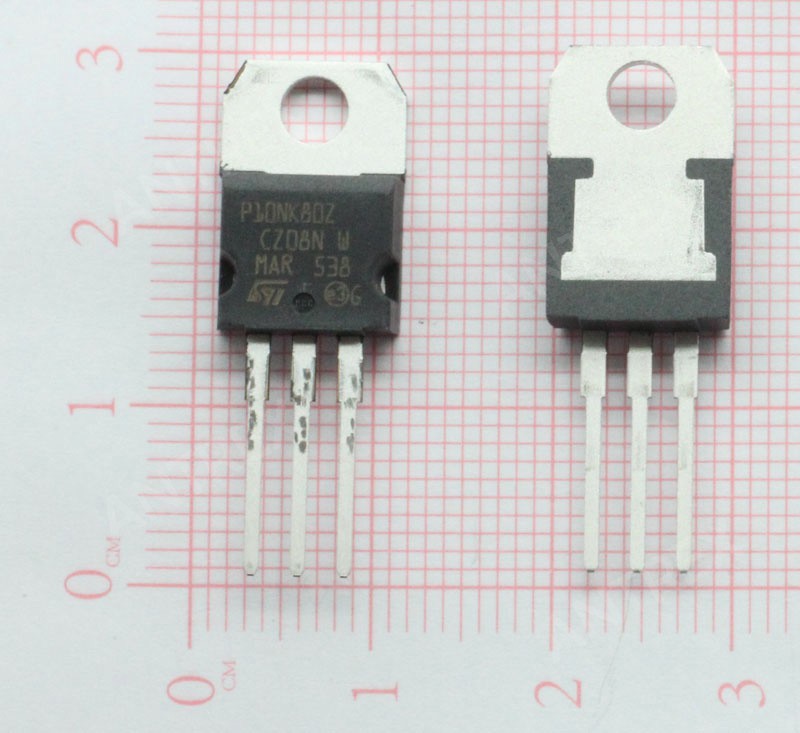

P10NK80Z is a STMicroelectronics high-voltage N-channel Power MOSFET developed using SuperMESH™ technology. The device features an 800V drain-source voltage rating, 9A continuous drain current capability and low on-resistance performance. With Zener-protected gate structure, high dv/dt capability, low gate charge and rugged avalanche performance, P10NK80Z is designed for demanding switching applications including offline power supplies, industrial converters, motor drives and high-voltage power control systems.

Key Features

• Manufacturer: STMicroelectronics

• Part Number: P10NK80Z

• Full / Related Part Number: STP10NK80Z

• Device Type: Power MOSFET

• Product Category: Discrete Semiconductor / MOSFET

• Transistor Type: N-Channel MOSFET

• Technology: SuperMESH™ Power MOSFET technology

• Drain-Source Voltage (VDS): 800V

• Continuous Drain Current (ID): 9A

• Drain-Source On Resistance (RDS(on)): 0.78Ω typical

• Gate-Source Voltage (VGS): ±30V

• Gate Charge: Approximately 72nC

• Power Dissipation: Up to 160W

• Avalanche Capability: 100% avalanche tested

• Protection Feature: Zener-protected gate structure

• Switching Performance: High dv/dt capability and low intrinsic capacitance

• Mounting Type: Through-hole mounting

• Package Type: TO-220 package

• Operating Junction Temperature: -55°C to +150°C

• Typical Use: Switching power supplies, converters, industrial control and high-voltage switching circuits

• Ordering / Packaging Note: P10NK80Z buyers should verify exact package type, manufacturer marking, suffix code, date code and datasheet revision before production use.

Applications

P10NK80Z is suitable for high-voltage switching applications including offline SMPS power supplies, AC/DC converters, industrial motor controllers, lighting systems, UPS equipment and power management circuits. Its high breakdown voltage, rugged avalanche capability and optimized switching characteristics make it suitable for reliable operation in demanding power electronics designs.

Quality & Sourcing

Antrex Electronics can support P10NK80Z sourcing with stock availability checks, RFQ quotation, package confirmation, date code review and shipment arrangement. For project-based purchasing, buyers can provide quantity, target price, required date code, packaging requirements and application information for faster quotation support.

For quality control, Antrex Electronics can help arrange product photos, label review, visual inspection and third-party testing support when required. OEMs, EMS providers, repair centers and electronic component buyers are welcome to send BOM lists or hard-to-find part requests for sourcing assistance.
