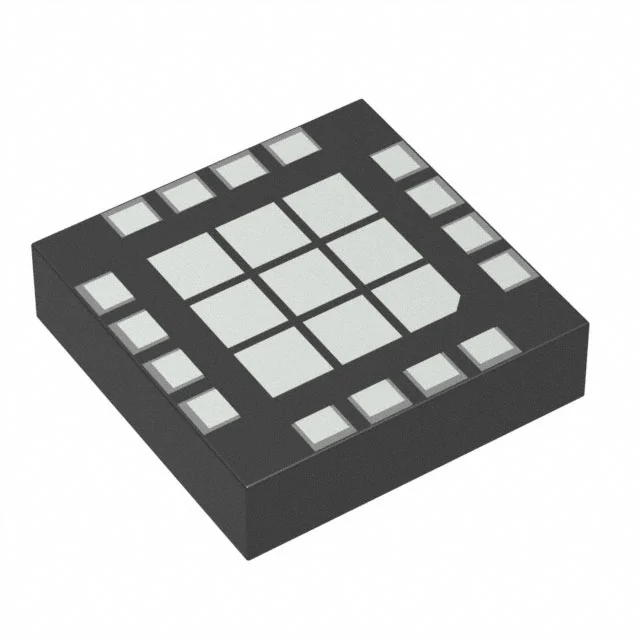

SKY66296-11
IC AMP LTE 700MHZ-800MHZ 16LGA
Quick Answer: SKY66296-11 is a RF amplifier or RF front-end gain device from Skyworks Solutions.
- Manufacturer
- Skyworks Solutions Inc.
- Product Category
- RF Amplifiers
- Package
- 16-LFLGA
- Stock
- 1,948 pcs
- Availability
- Current quantity subject to confirmation.
Product Attributes
| Manufacturer | Skyworks Solutions Inc. |
|---|---|
| Product Category | RF Amplifiers |
| Current - Supply | 70mA |
| Frequency | 700MHz ~ 800MHz |
| Gain | 35dB |
| Min Qty | 1 |
| Mounting Type | Surface Mount |
| Package | Tape & Reel (TR),Cut Tape (CT) |
| Product status | Obsolete |
| RF Type | LTE |
| Supplier Device Package | 16-LGA (5x5) |
| Test Frequency | 800MHz |
| Voltage - Supply | 5V |
| Datasheet | View Datasheet PDF |
Procurement Snapshot
Key supply and purchasing information for SKY66296-11.
Why Source from Antrex Electronics?
Independent distribution support for verified sourcing, inspection and international procurement requirements.
Independent Distribution Support
Shortage, obsolete and hard-to-find component sourcing for production and procurement requirements.
Traceability Review
Label, lot, date code and available supply-chain documentation can be reviewed before order confirmation.
Inspection & Testing
Visual inspection, X-ray and third-party testing support can be arranged when required.
Global Procurement Support
Support for OEM, EMS, distributors and international sourcing requirements across individual parts and BOM projects.
Credentials & Verification Support
Quality controls, traceability review and inspection support for electronic component sourcing.
Detailed Description for SKY66296-11
Product Overview
SKY66296-11 is a RF amplifier or RF front-end gain device from Skyworks Solutions. In an RF design it is normally used as a gain, driver or receiver-front-end stage in an RF signal chain, so the useful sourcing checks are not only the ordering code but also the operating band, gain behavior, output level, package footprint and bias conditions.
For this model, the key application data to verify are: exact frequency range must be verified on the manufacturer part page for this base number; gain, noise figure, output compression and linearity are part-number specific; and RF IC or module bias per datasheet. Because RF amplifier parts are layout- and matching-sensitive, SKY66296-11 should be treated as an exact-BOM item unless the replacement has been validated with the same matching network, thermal design and control conditions.
Key Features
- Manufacturer: Skyworks Solutions
- Part Number: SKY66296-11
- Device Type: RF amplifier or RF front-end gain device
- Signal-Chain Role: gain, driver or receiver-front-end stage in an RF signal chain
- Frequency / Band: exact frequency range must be verified on the manufacturer part page for this base number
- Gain / NF / Linearity: gain, noise figure, output compression and linearity are part-number specific
- Output Power / Compression: small-signal, driver or PA output class depends on the base family
- Supply / Bias: RF IC or module bias per datasheet
- RF Interface: 50 Ω RF path or RF IC pins depending on package
- Package / Mounting: surface-mount RF IC, MMIC, transistor or connectorized module depending on base number
- Design Note: verify S-parameters, matching network, thermal pad/flange and control pins before substituting this RF amplifier
Applications
- wireless equipment
- RF test systems
- communications modules
- exact-BOM replacement sourcing
