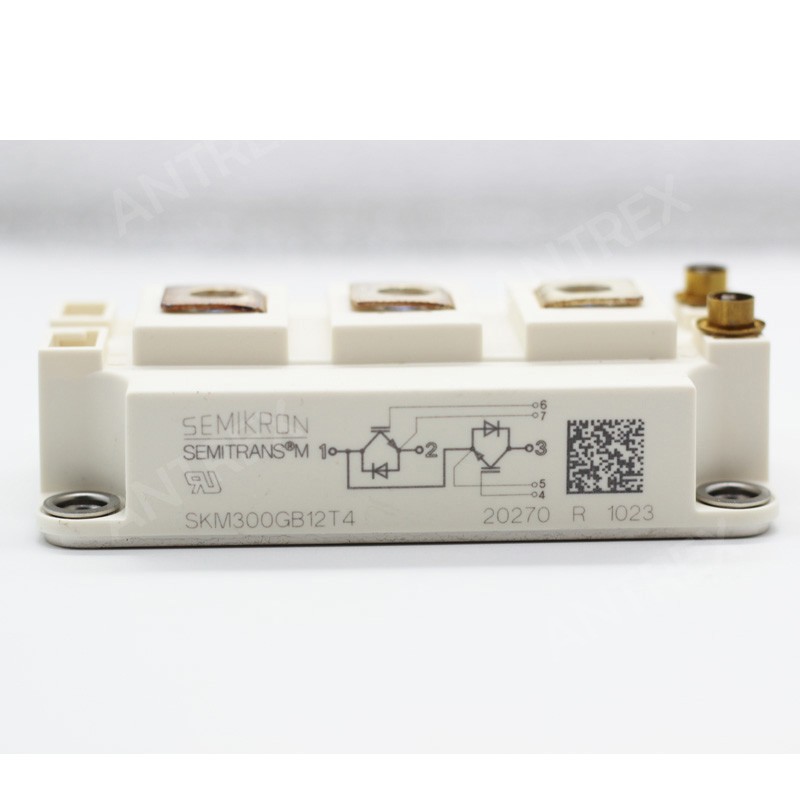

SKM300GB12T4
SEMIKRON SKM300GB12T4 is a 1200V 300A fast IGBT4 half-bridge power module with CAL4 diode technology, designed for high-frequency industrial inverter and motor drive applications.
Quick Answer: SKM300GB12T4 is a SEMIKRON Danfoss SEMITRANS 3 Fast IGBT power module designed for high-performance industrial power switching and energy conversion applications.
- Manufacturer
- SEMIKRON
- Product Category
- IGBT Modules
- Package
- MODULE
- Stock
- 150 pcs
- Availability
- Current quantity subject to confirmation.
Product Attributes
| Manufacturer | SEMIKRON |
|---|---|
| Product Category | IGBT Modules |
| Applications | AC Inverters, UPS Systems, Motor Drives, Welding Equipment |
| Baseplate Technology | Insulated Copper Baseplate with DBC Technology |
| Circuit Topology | Dual IGBT Half Bridge |
| Collector Current (IC) | 300 A |
| Collector-Emitter Saturation Voltage (VCE(sat)) | 1.85 V Typical |
| Collector-Emitter Voltage (VCES) | 1200 V |
| Configuration | Half Bridge Module |
| Dimensions | 106 mm × 62 mm × 31 mm |
| Diode Type | CAL4 Soft Recovery Freewheeling Diode |
| Gate-Emitter Voltage (VGES) | ±20 V |
| Integrated Gate Resistor | Yes |
| Isolation Voltage | 4000 V AC |
| Mounting Type | Screw Mount |
| Operating Junction Temperature | -40°C to +150°C |
| Package Type | SEMITRANS 3 |
| Peak Collector Current (ICM) | 600 A |
| Product Type | IGBT Power Module |
| Reverse Voltage (VRRM) | 1200 V |
| RoHS Status | Compliant |
| Switching Frequency Capability | Up to 20 kHz |
| Technology | IGBT4 Fast Trench IGBT |
| Weight | Approximately 320 g |
| Datasheet | Request Datasheet |
Procurement Snapshot
Key supply and purchasing information for SKM300GB12T4.
Why Source from Antrex Electronics?
Independent distribution support for verified sourcing, inspection and international procurement requirements.
Independent Distribution Support
Shortage, obsolete and hard-to-find component sourcing for production and procurement requirements.
Traceability Review
Label, lot, date code and available supply-chain documentation can be reviewed before order confirmation.
Inspection & Testing
Visual inspection, X-ray and third-party testing support can be arranged when required.
Global Procurement Support
Support for OEM, EMS, distributors and international sourcing requirements across individual parts and BOM projects.
Credentials & Verification Support
Quality controls, traceability review and inspection support for electronic component sourcing.
Detailed Description for SKM300GB12T4
Product Overview
SKM300GB12T4 is a SEMIKRON Danfoss SEMITRANS 3 Fast IGBT power module designed for high-performance industrial power switching and energy conversion applications. Featuring 1200V collector-emitter voltage capability, 300A current rating, IGBT4 Fast Trench technology and CAL4 soft-switching diode technology, this module delivers low switching losses, high power cycling capability and excellent thermal performance. It is suitable for AC inverter drives, UPS systems, electronic welders and high-frequency industrial converters.
Key Features
Manufacturer: SEMIKRON Danfoss
Part Number: SKM300GB12T4
Product Type: Fast IGBT Power Module
Series: SEMITRANS 3
Technology: IGBT4 Fast Trench Technology
Configuration: Half-Bridge IGBT Module
Topology: Half-Bridge
Collector-Emitter Voltage (VCES): 1200V
Collector Current (IC): 300A
Continuous Collector Current: Up to 420A depending on operating conditions
Collector-Emitter Saturation Voltage (VCE(sat)): 1.85V typical
Diode Technology: CAL4 soft switching freewheeling diode
Gate Drive: Integrated gate resistor
Package Type: SEMITRANS 3 module package
Dimensions: 106mm × 62mm × 31mm
Insulation Technology: Insulated copper baseplate with DBC technology
Switching Frequency Capability: Up to 20kHz
Operating Temperature Range: -40°C to +175°C
Mounting Type: Screw mounting
Features: Low switching losses, high reliability, increased power cycling capability and compact design
Typical Applications: AC inverter drives, UPS systems, electronic welders and industrial converters
Datasheet: SKM300GB12T4 datasheet PDF available for technical verification before production use.
Applications
SKM300GB12T4 is designed for high-efficiency switching systems requiring reliable IGBT performance and high-frequency operation. Typical applications include variable frequency drives (VFD), industrial motor controllers, UPS equipment, welding machines, renewable energy converters, power supplies and other advanced industrial power electronics platforms.
Quality & Sourcing
Antrex Electronics can support SKM300GB12T4 sourcing with stock availability checks, RFQ quotation, package confirmation, date code review and shipment arrangement. For project-based purchasing, customers can provide quantity requirements, delivery schedules, application details and technical specifications for faster quotation support.
For quality assurance, Antrex Electronics can assist with product photos, marking verification, visual inspection and third-party testing services when required. OEM manufacturers, industrial equipment suppliers, repair centers and electronic component buyers are welcome to submit BOM lists or hard-to-find power semiconductor requirements for sourcing assistance.
