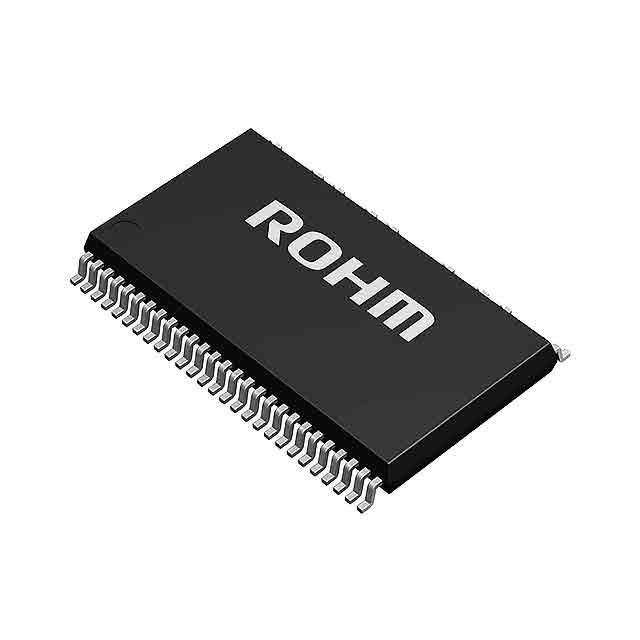

BM6205FS-E2
IC HALF BRIDGE DRVR 2.5A 54SSOP
- Manufacturer
- Rohm Semiconductor
- Product Category
- Full-Bridge & Half-Bridge (H-Bridge) Drivers
- Package
- 54-SOP (0.449", 11.40mm Width), 36 Leads
- Stock
- 713 pcs
- Availability
- Current quantity subject to confirmation.
Product Attributes
| Manufacturer | Rohm Semiconductor |
|---|---|
| Product Category | Full-Bridge & Half-Bridge (H-Bridge) Drivers |
| Applications | AC Motors |
| Current - Output / Channel | 2.5A |
| Current - Peak Output | 4A |
| Fault Protection | Current Limiting, Over Temperature, UVLO |
| Features | Bootstrap Circuit, Status Flag |
| Interface | Logic |
| Load Type | Inductive |
| Min Qty | 1 |
| Mounting Type | Surface Mount |
| Operating Temperature | -20°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge (3) |
| Package | Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT) |
| Product status | Obsolete |
| Rds On (Typ) | 1.7Ohm |
| Supplier Device Package | SSOP-A54_36 |
| Technology | Power MOSFET |
| Voltage - Load | 400V (Max) |
| Voltage - Supply | 13.5V ~ 16.5V |
| Datasheet | View Datasheet PDF |
