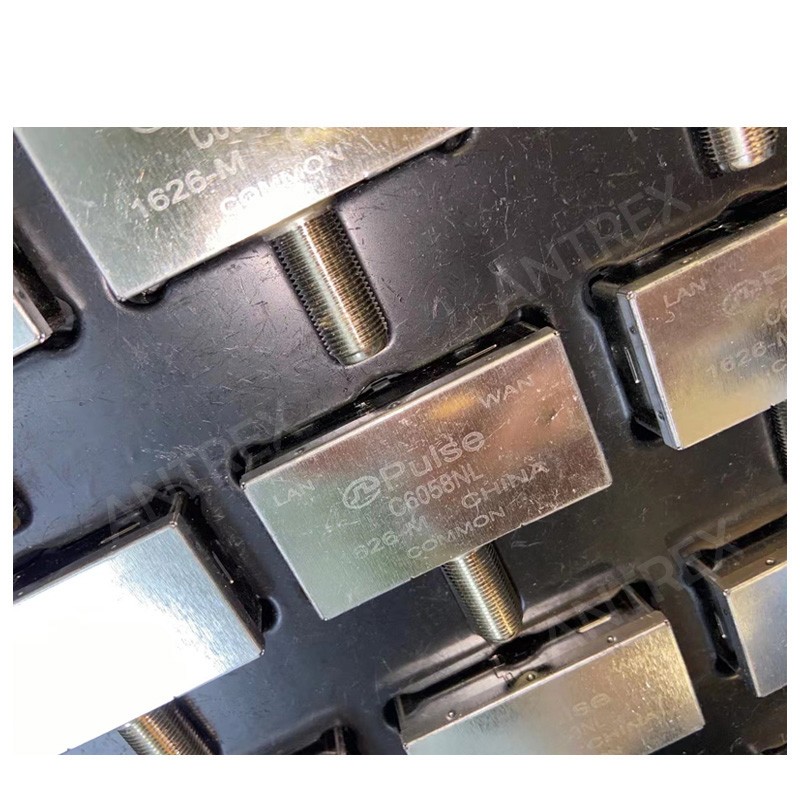

C6058
IC CHIP
Quick Answer: C6058 is a Pulse Electronics component developed for Entropic EN2x10 MoCA front ends, cable networking and coaxial multimedia distribution.
- Manufacturer
- Pulse Electronics
- Product Category
- RF Baluns
- Package
- -
- Stock
- 989 pcs
- Availability
- Current quantity subject to confirmation.
Product Attributes
| Manufacturer | Pulse Electronics |
|---|---|
| Product Category | RF Baluns |
| Min Qty | 0 |
| Package | Bulk |
| Product status | Obsolete |
| Datasheet | Request Datasheet |
Procurement Snapshot
Key supply and purchasing information for C6058.
Why Source from Antrex Electronics?
Independent distribution support for verified sourcing, inspection and international procurement requirements.
Independent Distribution Support
Shortage, obsolete and hard-to-find component sourcing for production and procurement requirements.
Traceability Review
Label, lot, date code and available supply-chain documentation can be reviewed before order confirmation.
Inspection & Testing
Visual inspection, X-ray and third-party testing support can be arranged when required.
Global Procurement Support
Support for OEM, EMS, distributors and international sourcing requirements across individual parts and BOM projects.
Credentials & Verification Support
Quality controls, traceability review and inspection support for electronic component sourcing.
Detailed Description for C6058
Product Overview
C6058 is a Pulse Electronics component developed for Entropic EN2x10 MoCA front ends, cable networking and coaxial multimedia distribution. The diplexer separates two coaxial frequency regions through dedicated low-pass and high-pass paths, allowing a shared cable interface to serve different MoCA or broadband functions. Confirmed selection information includes operating band: Low-pass path 975 MHz to 1.025 GHz; high-pass path 1.125 GHz to 1.525 GHz.
Pulse's official RF catalogue lists C6058 as a MoCA diplex filter with a 975-1025 MHz low-pass path and a 1125-1525 MHz high-pass path, cross-referenced to Entropic EN2x10. RF layout should follow the manufacturer land pattern, with controlled impedance, short interconnects and appropriate grounding around the signal-conditioning network. The recorded lifecycle state is Legacy MoCA exact model.
Key Features
- Manufacturer: Pulse Electronics
- Part Number: C6058
- Product Category: RF Diplex Filter
- Device Type: MoCA diplex filter with integrated F-connector architecture
- Frequency Range / Band: Low-pass path 975 MHz to 1.025 GHz; high-pass path 1.125 GHz to 1.525 GHz
- Impedance / Matching Relationship: Two-path diplex separation for MoCA RF front ends
- Technology: Integrated low-pass and high-pass diplex-filter network
- Package / Case: Integrated connectorized diplex-filter module
- Mounting Type: Chassis / connector mounted module
- Lifecycle Status: Legacy MoCA exact model
- Primary Application: Entropic EN2x10 MoCA front ends, cable networking and coaxial multimedia distribution
Applications
- Entropic EN2x10 MoCA front ends, cable networking and coaxial multimedia distribution
- Shared-coax cable networking and multimedia-over-coax equipment
- MoCA front ends requiring low- and high-frequency path separation
Quality & Sourcing
Antrex Electronics can support sourcing of C6058 for production, repair and shortage requirements. Incoming verification can compare the exact manufacturer marking, ordering suffix, package, frequency range, port configuration and documented RF function. For legacy or obsolete components, date-code and condition review, visual inspection and third-party testing can be coordinated before shipment. Alternative parts should remain subject to engineering approval because a nearby family code may use a different impedance, winding arrangement, filter response, RFIC match or PCB footprint.
