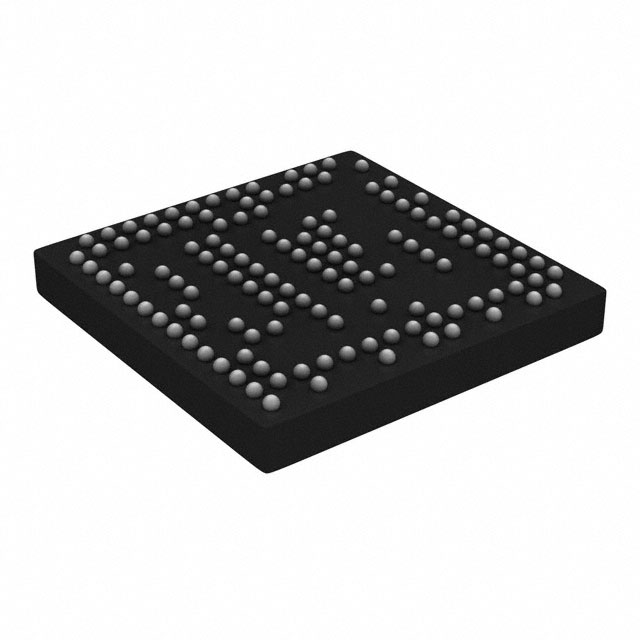

MC34709VK
IC PWR MGMT IMX50/53 130MAPBGA
- Manufacturer
- NXP USA Inc.
- Product Category
- Specialized Power Management ICs (PMICs)
- Package
- 130-LFBGA
- Stock
- 1,720 pcs
- Availability
- Current quantity subject to confirmation.
Product Attributes
| Manufacturer | NXP USA Inc. |
|---|---|
| Product Category | Specialized Power Management ICs (PMICs) |
| Applications | Processor |
| Current - Supply | 370µA |
| Min Qty | 1 |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Package | Tray |
| Product status | Active |
| Supplier Device Package | 130-MAPBGA (8x8) |
| Voltage - Supply | 3V ~ 4.5V |
| Datasheet | View Datasheet PDF |
Procurement Snapshot
Key supply and purchasing information for MC34709VK.
Why Source from Antrex Electronics?
Independent distribution support for verified sourcing, inspection and international procurement requirements.
Independent Distribution Support
Shortage, obsolete and hard-to-find component sourcing for production and procurement requirements.
Traceability Review
Label, lot, date code and available supply-chain documentation can be reviewed before order confirmation.
Inspection & Testing
Visual inspection, X-ray and third-party testing support can be arranged when required.
Global Procurement Support
Support for OEM, EMS, distributors and international sourcing requirements across individual parts and BOM projects.
Credentials & Verification Support
Quality controls, traceability review and inspection support for electronic component sourcing.
Detailed Description for MC34709VK
Product Overview
The NXP USA Inc. MC34709VK is a specialized power management integrated circuit for processor applications, including IMX50/53 contexts. It is a processor PMIC housed in a 130-LFBGA package, with a 130-MAPBGA (8x8) device package. The device is surface mount and operates from a 3 V to 4.5 V supply, with a 370 µA supply current. Its rated operating temperature range is -40°C to 85°C. It is intended for compact processor-centric embedded designs that require a dedicated power management IC in a ball-grid array footprint.
Key Features
- Specialized processor power management IC for processor applications
- 130-LFBGA package with 130-MAPBGA (8x8) device package
- Surface-mount construction
- 3 V to 4.5 V supply voltage range
- 370 µA supply current
- -40°C to 85°C operating temperature range
Applications
- Processor power management subsystems in embedded designs
- Application processor boards requiring a dedicated PMIC in a compact BGA footprint
- Processor-based hardware platforms operating within a 3 V to 4.5 V supply range
Design & Procurement Notes
Board designers should plan the layout for the 130-LFBGA, 130-MAPBGA (8x8) surface-mount package and account for the associated land pattern and routing constraints. The 3 V to 4.5 V supply range and 370 µA supply current should be checked against the processor platform's power rail and budget assumptions. The -40°C to 85°C operating temperature range should be considered during thermal and environmental design. For procurement, use the exact NXP USA Inc. part number MC34709VK and confirm the package form factor to ensure board-level compatibility.
