PS21867-P

Product Overview

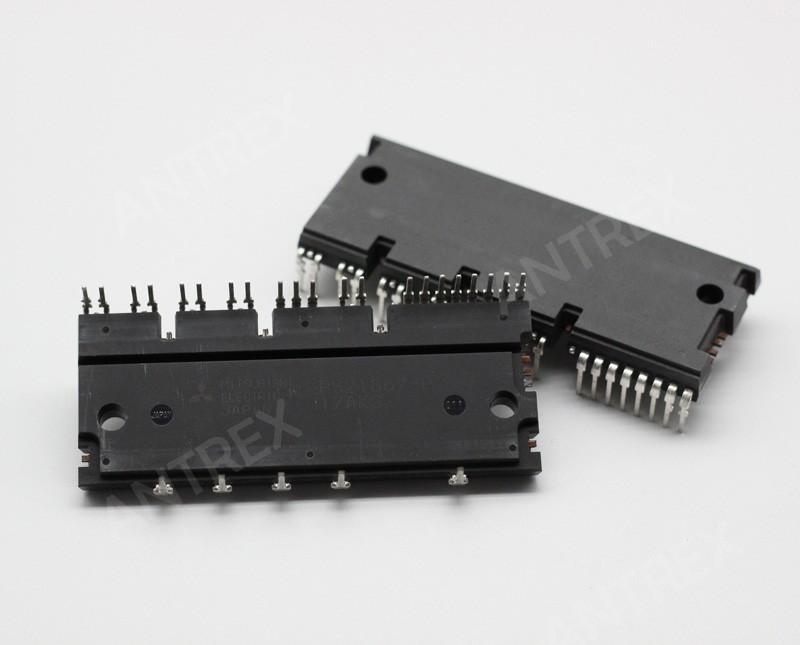

PS21867-P is a Mitsubishi Electric DIP-IPM™ (Dual-In-Line Intelligent Power Module) designed for three-phase motor inverter applications. The module integrates six IGBT power switches, freewheeling diodes, gate drive circuits and protection functions including short-circuit and undervoltage protection. With a 600V voltage rating and 30A current capability, PS21867-P provides a compact and reliable solution for industrial motor drives, inverter systems, air conditioning equipment and energy-efficient appliance applications.

Key Features

• Manufacturer: Mitsubishi Electric Semiconductor

• Part Number: PS21867-P

• Device Type: Intelligent Power Module (IPM)

• Product Category: Power Semiconductor Module / IGBT Module

• Series: DIP-IPM Generation Series

• Configuration: Three-phase inverter bridge

• Collector-Emitter Voltage (VCES): 600V

• Collector Current (IC): 30A

• Applicable Motor Rating: Approximately 2.2kW class

• Semiconductor Technology: Mitsubishi IGBT technology

• Integrated Devices: Six IGBT chips and six freewheeling diodes

• Built-in Driver Circuit: High-side and low-side gate drive circuits integrated

• Protection Features: Short-circuit protection and control supply undervoltage protection

• Isolation Voltage: 2500Vrms

• Control Interface: Direct connection to 3V/5V MCU logic signals

• Switching Frequency: Up to 20kHz class operation

• Thermal Performance: Low thermal resistance package design

• Package Type: DIP / D3 package

• Mounting Type: Through-hole mounting

• Operating Temperature: -20°C to +100°C class

• Typical Use: Industrial inverter drives, motor controllers, HVAC systems and power conversion equipment

• Ordering / Packaging Note: PS21867-P buyers should verify exact suffix code, package type, manufacturer marking, date code and application requirements before production use.

Applications

PS21867-P is suitable for three-phase inverter and motor control applications including industrial variable-frequency drives, servo systems, air conditioning compressors, pumps, fans, washing machines and automation equipment. Its integrated driver and protection functions reduce external circuitry requirements and improve system reliability in compact inverter designs.

Quality & Sourcing

Antrex Electronics can support PS21867-P sourcing with stock availability checks, RFQ quotation, package confirmation, date code review and shipment arrangement. For project-based purchasing, buyers can provide quantity, target price, required date code, packaging requirements and application information for faster quotation support.

For quality control, Antrex Electronics can help arrange product photos, label review, visual inspection and third-party testing support when required. OEMs, EMS providers, repair centers and electronic component buyers are welcome to send BOM lists or hard-to-find part requests for sourcing assistance.
