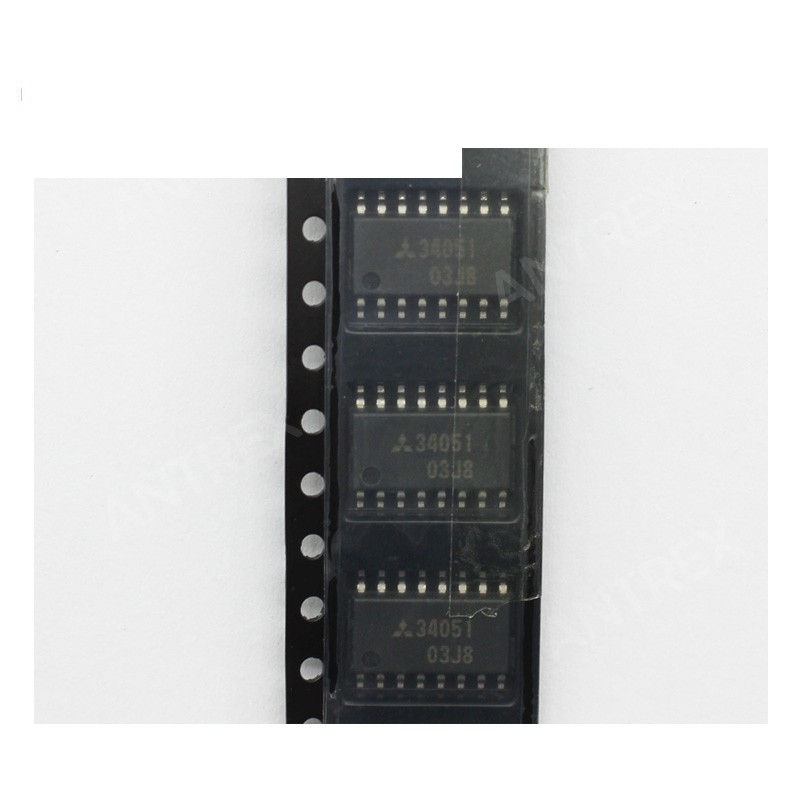

M34051
Dual RS-422A transceiver IC with differential drivers and receivers for high-speed data communication.
Quick Answer: M34051 is associated with the Mitsubishi Electric M5M34051 series dual RS-422A transceiver IC.
- Manufacturer
- Mitsubishi Electric
- Product Category
- Buffers, Drivers, Receivers, Transceivers
- Package
- SOP16
- Stock
- 1,500 pcs
- Availability
- Current quantity subject to confirmation.
Product Attributes
| Manufacturer | Mitsubishi Electric |
|---|---|
| Product Category | Buffers, Drivers, Receivers, Transceivers |
| Applications | HDD, Printers, POS Equipment, Digital Communication Systems |
| Data Transmission Type | Differential |
| Driver Output Current | ±20mA Typical |
| Input Type | Differential Input |
| Interface Standard | RS-422A / EIA-422 |
| Logic Family | Bipolar |
| Mounting Type | Through Hole / Surface Mount |
| Number of Drivers | 2 |
| Number of Pins | 16 |
| Number of Receivers | 2 |
| Operating Temperature | -20°C to +75°C |
| Output Type | Differential Output |
| Output Voltage | ±2V Minimum Differential Output |
| Package Type | DIP-16 / SOP-16 |
| Propagation Delay Time | 15ns typical |
| Receiver Input Sensitivity | ±200mV |
| RoHS Status | Contact Manufacturer |
| Supply Voltage | 5V |
| Supply Voltage Range | 4.75V to 5.25V |
| Datasheet | Request Datasheet |
Procurement Snapshot
Key supply and purchasing information for M34051.
Why Source from Antrex Electronics?
Independent distribution support for verified sourcing, inspection and international procurement requirements.
Independent Distribution Support
Shortage, obsolete and hard-to-find component sourcing for production and procurement requirements.
Traceability Review
Label, lot, date code and available supply-chain documentation can be reviewed before order confirmation.
Inspection & Testing
Visual inspection, X-ray and third-party testing support can be arranged when required.
Global Procurement Support
Support for OEM, EMS, distributors and international sourcing requirements across individual parts and BOM projects.
Credentials & Verification Support
Quality controls, traceability review and inspection support for electronic component sourcing.
Detailed Description for M34051
Product Overview
M34051 is associated with the Mitsubishi Electric M5M34051 series dual RS-422A transceiver IC. It integrates two differential line drivers and two differential receivers compliant with EIA RS-422A standards, providing reliable high-speed differential data transmission with excellent noise immunity. The device is designed for digital communication interfaces in industrial equipment, printers, POS systems and other electronic applications.
Key Features
Manufacturer: Mitsubishi Electric Semiconductor
Part Number: M34051 / M5M34051 Series
Device Type: Dual RS-422A Transceiver
Interface Standard: EIA RS-422A Compatible
Integrated Differential Line Drivers
Integrated Differential Line Receivers
Number of Drivers: 2 Channels
Number of Receivers: 2 Channels
Supply Voltage: 5V Class
High-Speed Differential Data Transmission
Excellent Noise Immunity
Low Power Consumption Operation
Suitable for Long-Distance Communication Interfaces
High Reliability Semiconductor Design
Technology: Bipolar Semiconductor Technology
Package Type: DIP / SOP Package Depending on Version
Operating Temperature: Commercial Temperature Range
Application Type: Serial Communication Interface
Suitable for Industrial Digital Equipment
Quality Support: Inspection, sourcing and BOM assistance available
Applications
M34051 is commonly used in high-speed serial communication systems, industrial controllers, HDD equipment, laser printers, POS terminals, digital equipment and other applications requiring reliable RS-422A differential communication.
Quality & Sourcing
Antrex Electronics provides sourcing support for M34051, including stock verification, quotation, package confirmation, quality inspection and shipment arrangement. Customers can provide BOM lists, required quantities and project requirements for professional electronic component sourcing services.
Datasheet
M34051 datasheet PDF is available through Mitsubishi Electric semiconductor archives and distributor resources. Please contact Antrex Electronics for datasheet confirmation, latest revision and sourcing support.
