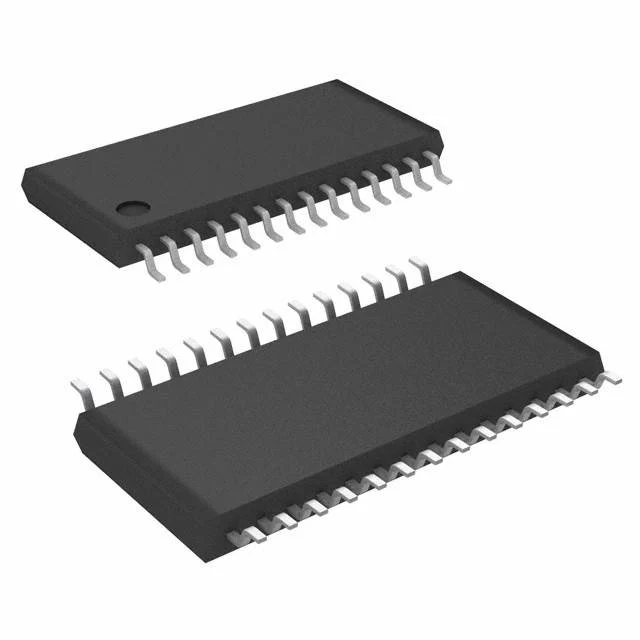

TDA5201XUMA1
RF RX ASK 310MHZ-350MHZ 28TSSOP
Quick Answer: TDA5201XUMA1 from Infineon Technologies is a ASK single-conversion receiver.
- Manufacturer
- Infineon Technologies
- Product Category
- RF Receivers
- Package
- 28-TSSOP (0.173", 4.40mm Width)
- Stock
- 1,057 pcs
- Availability
- Current quantity subject to confirmation.
Product Attributes
| Manufacturer | Infineon Technologies |
|---|---|
| Product Category | RF Receivers |
| Antenna Connector | PCB, Surface Mount |
| Applications | Alarm Systems, Communication Systems |
| Current - Receiving | 4.8mA |
| Data Interface | PCB, Surface Mount |
| Frequency | 310MHz ~ 350MHz |
| Min Qty | 1 |
| Modulation or Protocol | ASK |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Package | Tape & Reel (TR),Cut Tape (CT) |
| Product status | Obsolete |
| Sensitivity | -107dBm |
| Supplier Device Package | PG-TSSOP-28 |
| Voltage - Supply | 4.5V ~ 5.5V |
| Datasheet | View Datasheet PDF |
Procurement Snapshot
Key supply and purchasing information for TDA5201XUMA1.
Why Source from Antrex Electronics?
Independent distribution support for verified sourcing, inspection and international procurement requirements.
Independent Distribution Support
Shortage, obsolete and hard-to-find component sourcing for production and procurement requirements.
Traceability Review
Label, lot, date code and available supply-chain documentation can be reviewed before order confirmation.
Inspection & Testing
Visual inspection, X-ray and third-party testing support can be arranged when required.
Global Procurement Support
Support for OEM, EMS, distributors and international sourcing requirements across individual parts and BOM projects.
Credentials & Verification Support
Quality controls, traceability review and inspection support for electronic component sourcing.
Detailed Description for TDA5201XUMA1
Product Overview
TDA5201XUMA1 from Infineon Technologies is a ASK single-conversion receiver. This RF receiver entry is prepared for engineering and sourcing teams that need a practical summary of the receiver architecture, operating band and interface considerations.
The description below focuses on receiver function, RF band, modulation support, power/interface notes and supply-chain usage for BOM sourcing.
Key Features
- Manufacturer: Infineon Technologies
- Part Number: TDA5201XUMA1
- Device Type: ASK single-conversion receiver
- Receiver Architecture: Very-low-power single-chip ASK single-conversion receiver
- Frequency Bands: Designed for 868 MHz to 870 MHz and 433 MHz to 435 MHz bands
- Integrated Blocks: LNA, double-balanced mixer, PLL/local oscillator and data processing functions
- Modulation: ASK / OOK style data reception
- Supply Class: 5 V receiver family
- Use Case: Low-cost RF data transmission receiver systems
- Package / Case: surface-mount package family; exact outline follows Infineon ordering code
- Design Notes: Keep the selected IF bandwidth and crystal/reference values matched to the desired 433 MHz or 868 MHz band.
Applications
Remote keyless entry, wireless alarms, metering, remote control and home/building automation using ASK data links.
Legacy Infineon wireless receiver boards where a single-conversion ASK architecture is already qualified.
Quality & Sourcing
Antrex Electronics can support sourcing for TDA5201XUMA1 through available stock checks, BOM consolidation and alternative-lot checking. For RF receiver ICs, lot/date code, package condition, moisture sensitivity handling and original labeling should be checked before shipment.
For project builds or shortage support, Antrex Electronics can coordinate visual inspection, packaging verification and third-party electrical or authenticity testing when required. This helps buyers manage risk when sourcing discontinued, legacy or hard-to-find RF receiver parts.
