FL128PIF

Product Overview

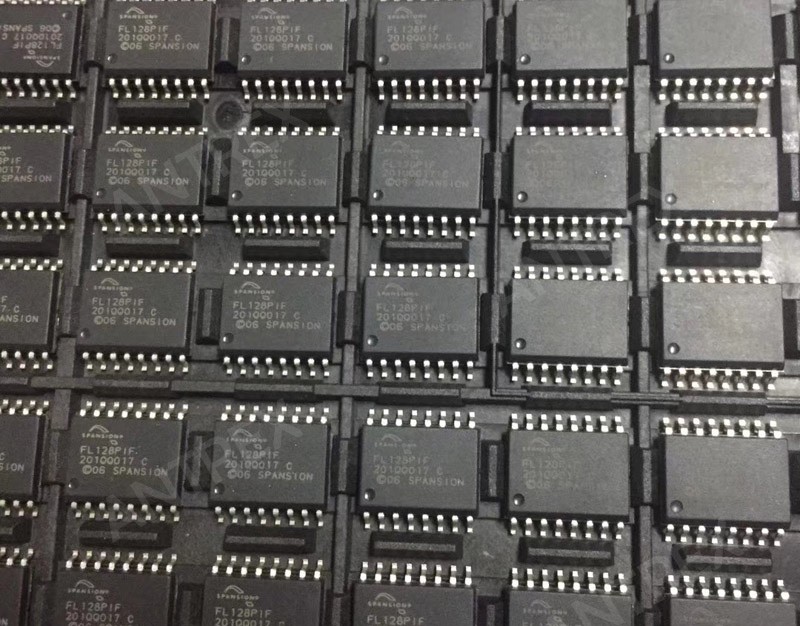

FL128PIF is a Spansion (now part of Cypress Semiconductor / Infineon Technologies) S25FL128P family 128Mb serial Flash memory device designed for non-volatile code and data storage applications. The device provides 128Mbit (16MByte) Flash memory density, operates from a single 2.7V to 3.6V power supply and supports SPI-compatible serial communication. With high endurance, fast page programming, sector erase capability and compact 16-pin SOIC packaging, it is suitable for embedded systems, industrial controllers, networking equipment, automotive electronics and firmware storage applications. :contentReference[oaicite:0]{index=0}

Key Features

• Manufacturer: Spansion Inc. (Cypress Semiconductor / Infineon Technology Family)

• Part Number: FL128PIF

• Device Type: Serial NOR Flash Memory

• Product Category: Non-Volatile Memory IC

• Memory Density: 128Mbit

• Memory Organization: 16M × 8 Bits

• Memory Technology: CMOS NOR Flash Memory

• Interface Type: SPI Serial Interface

• Operating Voltage: 2.7V to 3.6V

• Supply Voltage: 3.0V Typical

• Maximum Clock Frequency: Up to 104MHz

• Page Programming: Up to 256 Bytes per Page

• Sector Architecture: Uniform Sector Architecture

• Sector Size Options: 64KB or 256KB Sector Configuration Depending on Device Version

• Erase Function: Sector Erase and Bulk Erase Support

• Program Time: Approximately 1.5ms Typical Page Program Time

• Endurance: Approximately 100,000 Program/Erase Cycles per Sector

• Data Retention: Approximately 20 Years

• Power Saving Mode: Deep Power Down Mode Supported

• Package Type: SOP-16 / SOIC-16

• Package Body Width: 300 mil

• Mounting Type: Surface Mount Technology (SMT)

• Operating Temperature Range: Commercial / Industrial Options Depending on Ordering Code

• Protection Features: Block Protection Bits and Write Protection Functions

• Typical Applications: Firmware Storage, Embedded Systems, Industrial Controllers, Networking Equipment, Automotive Electronics and BIOS Storage

• Product Status: Legacy / Obsolete Component

• Ordering Note: Buyers should verify exact suffix, package type, temperature grade, memory architecture, SPI compatibility and firmware requirements before production use.

Applications

FL128PIF is designed for embedded systems requiring reliable non-volatile program and data storage. Typical applications include industrial automation equipment, embedded controllers, communication devices, networking hardware, automotive control units, medical instruments, consumer electronics and legacy product maintenance projects. Its SPI interface and compact SOIC-16 package make it suitable for space-constrained PCB designs. :contentReference[oaicite:1]{index=1}

Quality & Sourcing

Antrex Electronics can support FL128PIF sourcing with stock availability checks, RFQ quotation, manufacturer verification, package confirmation, date code review and shipment arrangement. For legacy Flash memory projects, buyers can provide required capacity, package preference, firmware compatibility requirements, acceptable date codes and application information for faster quotation support.

For quality control, Antrex Electronics can help arrange product photos, marking review, visual inspection, authenticity verification and third-party testing support when required. OEMs, EMS providers, industrial equipment manufacturers, repair centers and electronic component buyers are welcome to send BOM lists or hard-to-find memory component requests for sourcing assistance.

Datasheet

       Download FL128PIF Datasheet PDF
