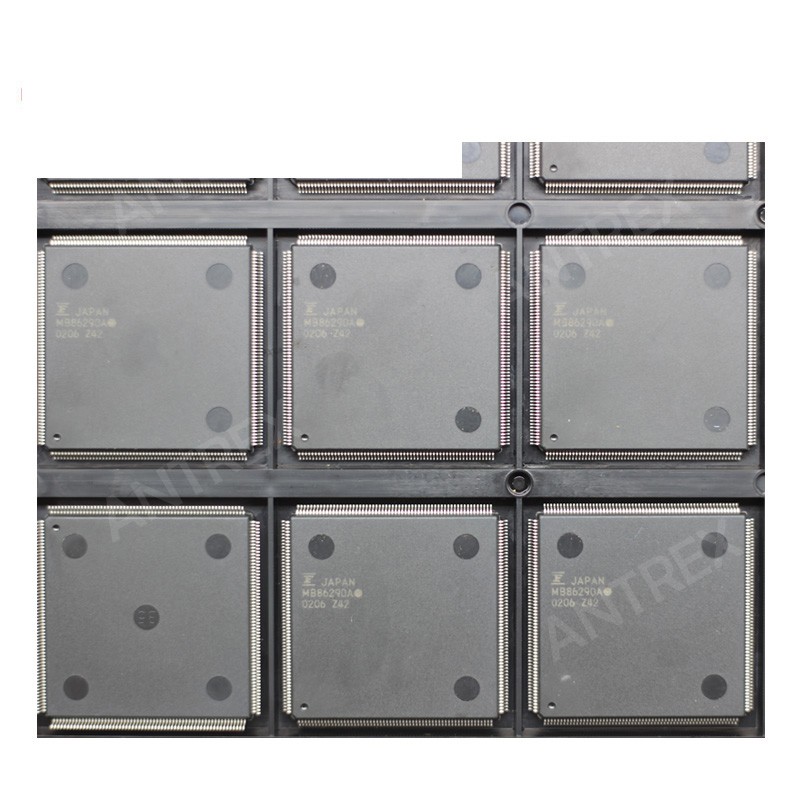

MB86290APFVS-G-BND
High-performance embedded graphics controller with 2D/3D acceleration and RGB display support
Quick Answer: MB86290APFVS-G-BND is a graphics processor/controller IC from Fujitsu Semiconductor, belonging to the MB86290A graphics controller family.
- Manufacturer
- Fuji Electric Co., Ltd.
- Product Category
- Memory Controllers
- Package
- QFP256
- Stock
- 1,500 pcs
- Availability
- Current quantity subject to confirmation.
Product Attributes
| Manufacturer | Fuji Electric Co., Ltd. |
|---|---|
| Product Category | Memory Controllers |
| Applications | Automotive Displays, Navigation Systems, Industrial Graphics Equipment |
| Core Technology | CMOS |
| Core Voltage | 2.5V |
| Display Interface | RGB Output |
| Display Resolution | Up to 1024 × 768 |
| External Data Bus Width | 32 bit |
| Graphics Engine | 2D / 3D Graphics Accelerator |
| Graphics Features | Texture Mapping, Z-Buffering, Alpha Blending |
| I/O voltage | 3.3V |
| Manufacturer | Fujitsu Semiconductor |
| Maximum Pixel Depth | 16 bit |
| Memory Interface | External SDRAM / SGRAM Support |
| Memory Type | External Graphics Memory |
| Mounting Type | Surface Mount |
| Operating Frequency | Up to 100MHz |
| Operating Temperature | -40°C to +85°C |
| Package Size | 240-Pin QFP (FPT-240P-M03) |
| Package Type | Plastic QFP |
| RoHS Status | Lead Free / RoHS Compliant |
| Supply Voltage Range | 2.3V to 2.7V |
| Terminal Pitch | 0.5mm |
| Datasheet | Request Datasheet |
Procurement Snapshot
Key supply and purchasing information for MB86290APFVS-G-BND.
Why Source from Antrex Electronics?
Independent distribution support for verified sourcing, inspection and international procurement requirements.
Independent Distribution Support
Shortage, obsolete and hard-to-find component sourcing for production and procurement requirements.
Traceability Review
Label, lot, date code and available supply-chain documentation can be reviewed before order confirmation.
Inspection & Testing
Visual inspection, X-ray and third-party testing support can be arranged when required.
Global Procurement Support
Support for OEM, EMS, distributors and international sourcing requirements across individual parts and BOM projects.
Credentials & Verification Support
Quality controls, traceability review and inspection support for electronic component sourcing.
Detailed Description for MB86290APFVS-G-BND
Product Overview
MB86290APFVS-G-BND is a graphics processor/controller IC from Fujitsu Semiconductor, belonging to the MB86290A graphics controller family. It integrates advanced 2D/3D graphics acceleration functions, including texture mapping, shading, polygon processing and display control. With a high-performance CMOS architecture and PQFP package, it is designed for embedded graphics systems such as automotive displays, industrial terminals and multimedia equipment.
Key Features
Manufacturer: Fujitsu Semiconductor
Part Number: MB86290APFVS-G-BND
Device Type: Graphics Processor / Graphics Controller
Product Family: MB86290A Graphics Controller Series
Processing Type: Embedded 2D/3D Graphics Acceleration
CPU Interface: 32-bit Host Interface Support
Graphics Functions: Polygon Rendering, Texture Mapping and Shading
Display Processing Support
Maximum Pixel Depth: 16-bit Color Support
External Memory Interface Support
High-Speed Graphics Data Processing
CMOS Semiconductor Technology
Supply Voltage: 2.7V Core / 3.3V I/O Class
Operating Temperature: -40°C to +85°C
Package Type: PQFP / QFP Package
Number of Pins: 240 Pins Class
Package Size: Approximately 32mm × 32mm
Application Type: Embedded Graphics and Display Control
Suitable for Industrial and Automotive Electronics
Quality Support: Inspection, sourcing and BOM assistance available
Applications
MB86290APFVS-G-BND is suitable for automotive navigation systems, industrial HMI displays, embedded graphic terminals, multimedia devices, control panels, instrumentation systems and other electronic equipment requiring dedicated graphics processing capability.
Quality & Sourcing
Antrex Electronics provides sourcing support for MB86290APFVS-G-BND, including stock verification, quotation, package confirmation, date code review, quality inspection and shipment arrangement. Customers can provide BOM lists, required quantities and project requirements for professional electronic component sourcing services.
Datasheet
MB86290APFVS-G-BND datasheet PDF is available through Fujitsu Semiconductor documentation archives and authorized distributor resources. Please contact Antrex Electronics for datasheet confirmation, latest revision and sourcing support.
