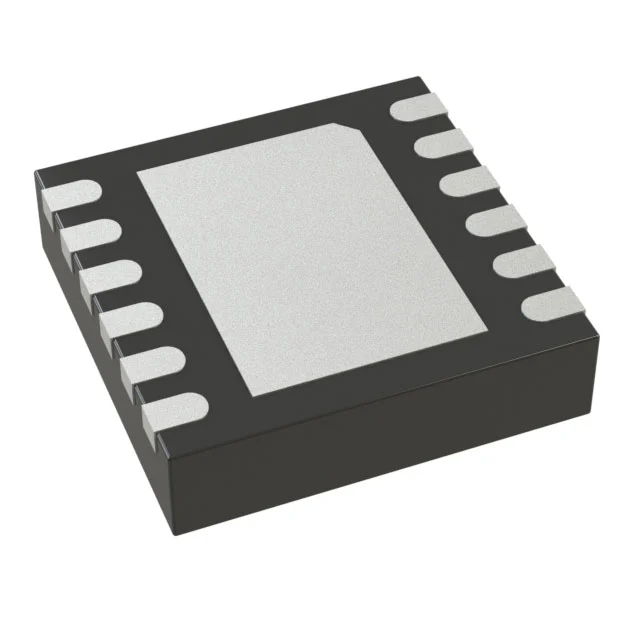

LT2940CDD#TRPBF
IC POWER/CURRENT MONITOR 12DFN
- Manufacturer
- Analog Devices Inc.
- Product Category
- Specialized Power Management ICs (PMICs)
- Package
- 12-WFDFN Exposed Pad
- Stock
- 1,494 pcs
- Availability
- Current quantity subject to confirmation.
Product Attributes
| Manufacturer | Analog Devices Inc. |
|---|---|
| Product Category | Specialized Power Management ICs (PMICs) |
| Applications | Current/Power Monitor |
| Current - Supply | 3.5mA |
| Min Qty | 2500 |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 70°C |
| Package | Tape & Reel (TR) |
| Product status | Active |
| Supplier Device Package | 12-DFN (3x3) |
| Voltage - Supply | 6V ~ 80V |
| Datasheet | View Datasheet PDF |
Procurement Snapshot
Key supply and purchasing information for LT2940CDD#TRPBF.
Why Source from Antrex Electronics?
Independent distribution support for verified sourcing, inspection and international procurement requirements.
Independent Distribution Support
Shortage, obsolete and hard-to-find component sourcing for production and procurement requirements.
Traceability Review
Label, lot, date code and available supply-chain documentation can be reviewed before order confirmation.
Inspection & Testing
Visual inspection, X-ray and third-party testing support can be arranged when required.
Global Procurement Support
Support for OEM, EMS, distributors and international sourcing requirements across individual parts and BOM projects.
Credentials & Verification Support
Quality controls, traceability review and inspection support for electronic component sourcing.
Detailed Description for LT2940CDD#TRPBF
Product Overview
Analog Devices Inc. LT2940CDD#TRPBF is a surface-mount current and power monitor IC in a 12-WFDFN exposed-pad package, with 12-DFN (3x3) device package dimensions. The device is intended for current and power monitoring within power-management systems. It operates from a 6V to 80V supply and draws 3.5mA supply current. Its operating temperature range is 0°C to 70°C. The package and surface-mount format support placement on printed circuit boards where monitoring circuitry is integrated with nearby power paths in the final assembly.
Key Features
- Current and power monitor IC for power-management systems.
- 12-WFDFN exposed-pad package, 12-DFN (3x3).
- 6V to 80V supply voltage range.
- 3.5mA supply current.
- 0°C to 70°C operating temperature range.
- Surface-mount mounting type.
Applications
- Load-current monitoring in power distribution paths.
- Power consumption measurement on supply rails.
- System current monitoring in power supply circuits.
Design & Procurement Notes
Designers should verify that the available supply voltage remains within the 6V to 80V range and that the 3.5mA supply current fits the system power budget. The 0°C to 70°C operating temperature range should be checked against the intended environment. The device uses a 12-WFDFN exposed-pad, 12-DFN (3x3) surface-mount package, so PCB pad layout and exposed-pad thermal handling should be planned during schematic and layout review for board-level integration. The 12-DFN (3x3) package footprint should also be checked against available PCB area. Confirm the exact manufacturer part number LT2940CDD#TRPBF during procurement. Because the part is a current and power monitor IC, selection should be based on the required monitoring function rather than assumptions about additional power-management capabilities.
