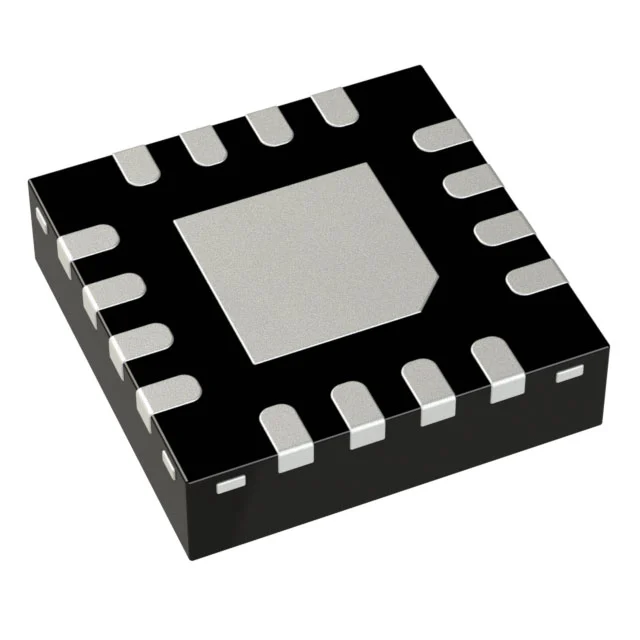

HMC539LP3E
RF ATTEN 0.25-7.75DB 50OHM 16QFN
Quick Answer: The HMC539LP3E from Analog Devices is a 5-Bit digital attenuator designed for controlled signal reduction in 50-ohm RF paths.
- Manufacturer
- Analog Devices Inc.
- Product Category
- RF Attenuators
- Package
- 16-VFQFN Exposed Pad
- Stock
- 905 pcs
- Availability
- Current quantity subject to confirmation.
Product Attributes
| Manufacturer | Analog Devices Inc. |
|---|---|
| Product Category | RF Attenuators |
| Attenuation Value | 0.25dB ~ 7.75dB |
| Frequency Range | 0 Hz ~ 4 GHz |
| Impedance | 50 Ohms |
| Min Qty | 1 |
| Package | Strip |
| Product status | Obsolete |
| Datasheet | View Datasheet PDF |
Procurement Snapshot
Key supply and purchasing information for HMC539LP3E.
Why Source from Antrex Electronics?
Independent distribution support for verified sourcing, inspection and international procurement requirements.
Independent Distribution Support
Shortage, obsolete and hard-to-find component sourcing for production and procurement requirements.
Traceability Review
Label, lot, date code and available supply-chain documentation can be reviewed before order confirmation.
Inspection & Testing
Visual inspection, X-ray and third-party testing support can be arranged when required.
Global Procurement Support
Support for OEM, EMS, distributors and international sourcing requirements across individual parts and BOM projects.
Credentials & Verification Support
Quality controls, traceability review and inspection support for electronic component sourcing.
Detailed Description for HMC539LP3E
Product Overview
The HMC539LP3E from Analog Devices is a 5-Bit digital attenuator designed for controlled signal reduction in 50-ohm RF paths. It provides 7.75 dB across a documented DC to 4.0 GHz operating range. The device is documented for applications including Cellular infrastructure, Microwave radio and VSAT, Broadband telecommunications.
Key Features
- Attenuator Type: 5-Bit digital attenuator
- Frequency Range: DC to 4.0 GHz
- Attenuation Range: 7.75 dB
- Step Size: 0.25 dB
- Insertion Loss: 0.7 dB typical
- Input IP3: +50 dBm
- Impedance: 50 ohms
- Package: 16-Lead QFN (3mm x 3mm w/ EP) Material De
Applications
- Cellular infrastructure
- Microwave radio and VSAT
- Broadband telecommunications
- Sensors
