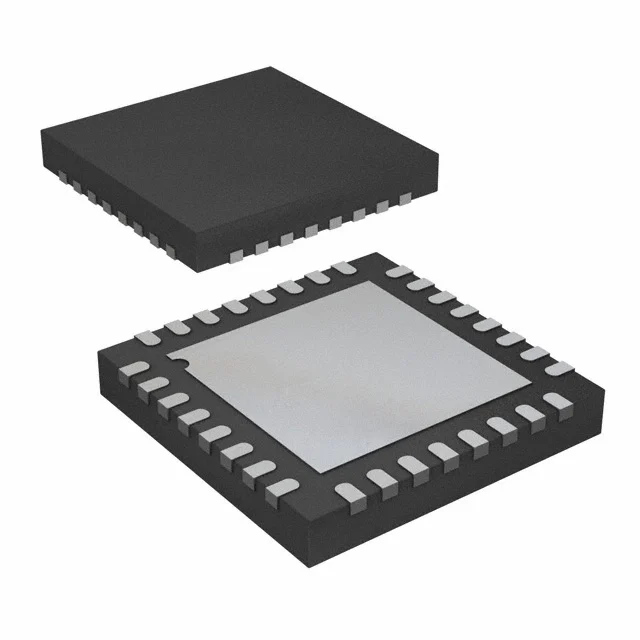

ADF5901WCCPZ
IC 4 CHANNEL MMIC 24GHZ
- Manufacturer
- Analog Devices Inc.
- Product Category
- RF Miscellaneous ICs & Modules
- Package
- 32-WFQFN Exposed Pad, CSP
- Stock
- 100 pcs
- Availability
- Current quantity subject to confirmation.
Product Attributes
| Manufacturer | Analog Devices Inc. |
|---|---|
| Product Category | RF Miscellaneous ICs & Modules |
| Frequency | 24GHz |
| Function | VCO |
| Min Qty | 1 |
| Mounting Type | Surface Mount |
| Package | Tray |
| Product status | Active |
| RF Type | Radar |
| Supplier Device Package | 32-LFCSP (5x5) |
| Datasheet | View Datasheet PDF |
Procurement Snapshot
Key supply and purchasing information for ADF5901WCCPZ.
Why Source from Antrex Electronics?
Independent distribution support for verified sourcing, inspection and international procurement requirements.
Independent Distribution Support
Shortage, obsolete and hard-to-find component sourcing for production and procurement requirements.
Traceability Review
Label, lot, date code and available supply-chain documentation can be reviewed before order confirmation.
Inspection & Testing
Visual inspection, X-ray and third-party testing support can be arranged when required.
Global Procurement Support
Support for OEM, EMS, distributors and international sourcing requirements across individual parts and BOM projects.
Credentials & Verification Support
Quality controls, traceability review and inspection support for electronic component sourcing.
Detailed Description for ADF5901WCCPZ
Product Overview
ADF5901WCCPZ from Analog Devices Inc. is a 24 GHz radar transmitter MMIC with VCO/PGA and dual PA outputs used in RF, microwave or high-speed receiver/transmitter signal-chain designs. This description focuses on practical electrical parameters, interface requirements and sourcing relevance for engineering and procurement teams.
The exact ordering suffix should be checked for package style, reel or tray format, temperature grade and board-level compatibility before replacing an existing design.
Key Features
- Manufacturer: Analog Devices Inc.
- Part Number: ADF5901WCCPZ
- Device Type: 24 GHz radar transmitter MMIC with VCO/PGA and dual PA outputs
- RF Frequency Range: 24 GHz to 24.25 GHz radar transmitter range
- Channel Count: two transmit channels with on-chip power control
- Integrated LO Source: on-chip 24 GHz VCO generates the Tx and LO output signals
- Control Interface: 4-wire serial interface for register control
- Additional Function: integrated temperature sensor for radar system monitoring
- Package / Case: 32-lead 5 mm × 5 mm LFCSP package family
- System Role: used with ADF5904 receiver downconverter and ADF4159 PLL in 24 GHz FMCW radar chipsets
- Package / Case: package option defined by the exact ordering suffix
- Design Notes: Confirm the exact suffix, package drawing, temperature grade and RF reference design before substitution or production approval.
Applications
24 GHz FMCW radar sensors, traffic monitoring, level sensing, industrial presence detection and security radar modules.
Radar chipset replacement projects where the Tx channel count, VCO path and 32-lead LFCSP footprint must match.
Quality & Sourcing
Antrex Electronics can support sourcing for ADF5901WCCPZ through available stock checks, BOM consolidation and alternative-lot review. For RF and microwave ICs, package markings, moisture sensitivity, date code and original labeling should be checked before shipment.
For shortage coverage, repair builds or production support, Antrex Electronics can coordinate visual inspection, package verification and third-party testing when required. This helps buyers reduce risk when sourcing discontinued, legacy or hard-to-find RF miscellaneous ICs and modules.
