2SK3934

Product Overview

2SK3934 is a Toshiba silicon N-channel power MOSFET based on π-MOSVI technology and designed primarily for switching regulator applications. The device provides a 500V drain-source voltage rating, 15A continuous drain current capability and low drain-source on-resistance for efficient power switching. With high forward transfer admittance, low leakage current and enhancement-mode operation, 2SK3934 is suitable for switch-mode power supplies, DC-DC converters, industrial power control and other high-voltage switching circuits. Its JEITA SC-67 / Toshiba 2-10U1B package supports through-hole mounting and effective thermal management.

Key Features

• Manufacturer: Toshiba Semiconductor

• Part Number: 2SK3934

• Product Type: Power MOSFET

• Transistor Type: Silicon N-Channel MOSFET

• Technology: π-MOSVI

• Operating Mode: Enhancement Mode

• Drain-Source Voltage (VDSS): 500V

• Drain-Gate Voltage (VDGR): 500V

• Gate-Source Voltage (VGSS): ±30V

• Continuous Drain Current (ID): 15A

• Pulsed Drain Current (IDP): 60A

• Drain Power Dissipation (PD): 50W at TC = 25°C

• Typical Drain-Source On-Resistance (RDS(on)): 0.23Ω

• Typical Forward Transfer Admittance (|Yfs|): 8.2S

• Gate Threshold Voltage (Vth): 2.0V to 4.0V

• Drain Leakage Current (IDSS): 100µA at VDS = 500V

• Single Pulse Avalanche Energy (EAS): 1.08J

• Avalanche Current (IAR): 15A

• Repetitive Avalanche Energy (EAR): 5.0mJ

• Maximum Channel Temperature: +150°C

• Storage Temperature Range: -55°C to +150°C

• Thermal Resistance, Channel-to-Case: 2.5°C/W Maximum

• Thermal Resistance, Channel-to-Ambient: 62.5°C/W Maximum

• Package Standard: JEITA SC-67

• Toshiba Package Code: 2-10U1B

• Approximate Weight: 1.7g

• Pin Configuration: Gate, Drain, Source

• Typical Applications: Switching Regulators, SMPS, DC-DC Converters and High-Voltage Power Switching

Applications

2SK3934 is designed for switching regulator circuits requiring high blocking voltage, low conduction loss and reliable switching performance. Typical applications include switch-mode power supplies, DC-DC converters, industrial power supplies, inverter circuits, power regulators and other high-voltage electronic switching systems.

Quality & Sourcing

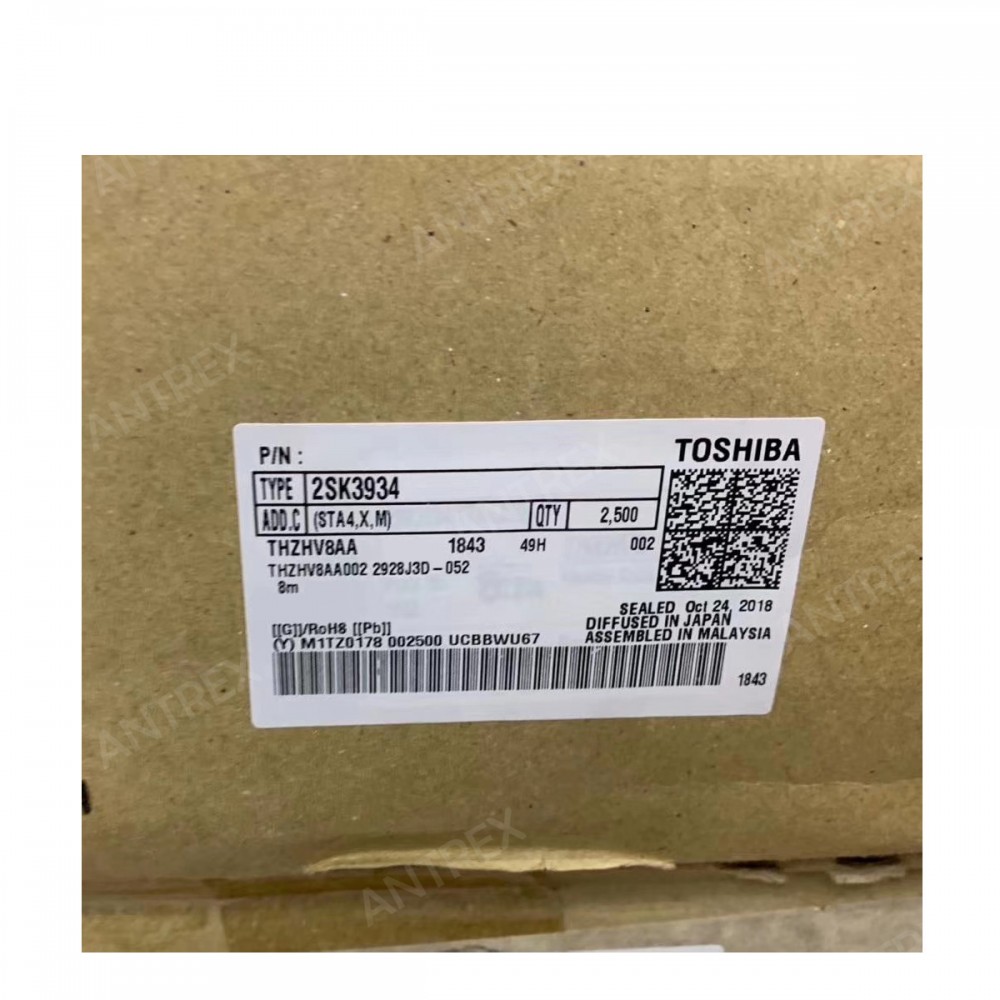

Antrex Electronics can support 2SK3934 sourcing with stock availability checks, RFQ quotation, package confirmation, date code review and shipment arrangement. For legacy semiconductor procurement, buyers should confirm Toshiba markings, package configuration, production date and storage condition before use.

For quality control, Antrex Electronics can help arrange product photos, marking verification, visual inspection, package confirmation and third-party testing support when required. OEMs, EMS providers, repair centers and industrial equipment manufacturers are welcome to send BOM lists or obsolete MOSFET requirements for sourcing assistance.

Datasheet PDF:    2SK3934 Datasheet
