MPC9865VM

Product Overview

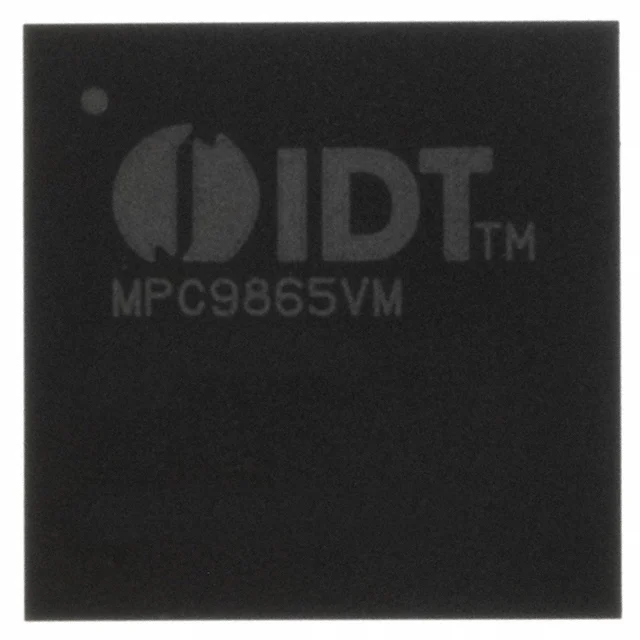

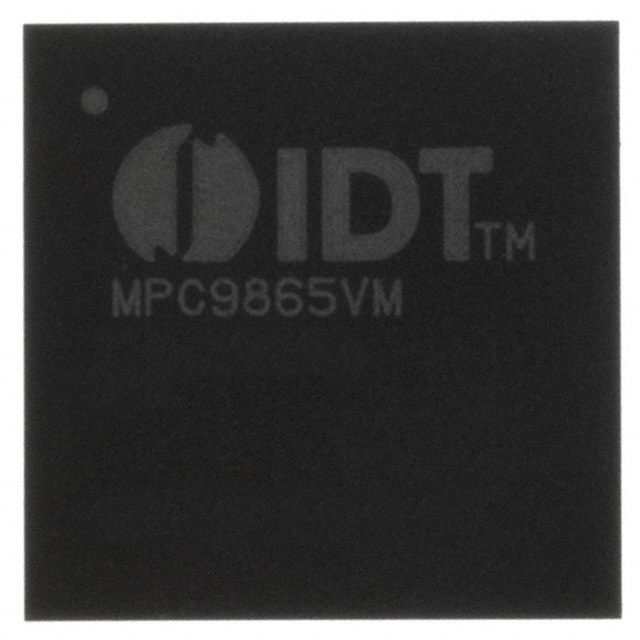

The Renesas Electronics Corporation MPC9865VM is an application-specific clock and frequency generator IC intended for networking, PowerQUICC III, and telecom timing use. The listed .It is supplied in a surface-mount 100-LBGA package, with a supplier device package of 100-CABGA (11x11).

Key Features

• Clock and frequency generator IC with a maximum frequency of 200 MHz.
• PLL operation is specified, with inputs listed for LVCMOS, LVPECL, and Crystal and an LVCMOS output.
• Single circuit with a 3:10 input-to-output ratio and differential input/output support listed as Yes/No.
• Supply voltage range of 3.135 V to 3.465 V and operating temperature range of -40°C to 85°C.
• Surface-mount 100-LBGA package; supplier device package is 100-CABGA (11x11).

Applications

• Clock and frequency generation in networking equipment timing paths.
• Telecommunications infrastructure subsystems requiring a single LVCMOS clock output.
• PowerQUICC III-oriented timing architectures where the supplied main purpose categories apply.

Design & Procurement Notes

When selecting the MPC9865VM, verify that the 3.135 V to 3.465 V supply and -40°C to 85°C operating range match the board environment, and confirm that the LVCMOS, LVPECL, or Crystal input options and single LVCMOS output meet the timing architecture. The 200 MHz maximum frequency and 3:10 input-to-output ratio should be checked against the required clock synthesis path. Because the differential input/output support is listed as Yes/No, treat differential signal assignment as requiring confirmation against the supplied specification. The 100-LBGA / 100-CABGA (11x11) surface-mount package should be accommodated in layout and assembly files. The Obsolete status should be considered for long-term supply planning.
