MPM3610AGQV-P

Product Overview

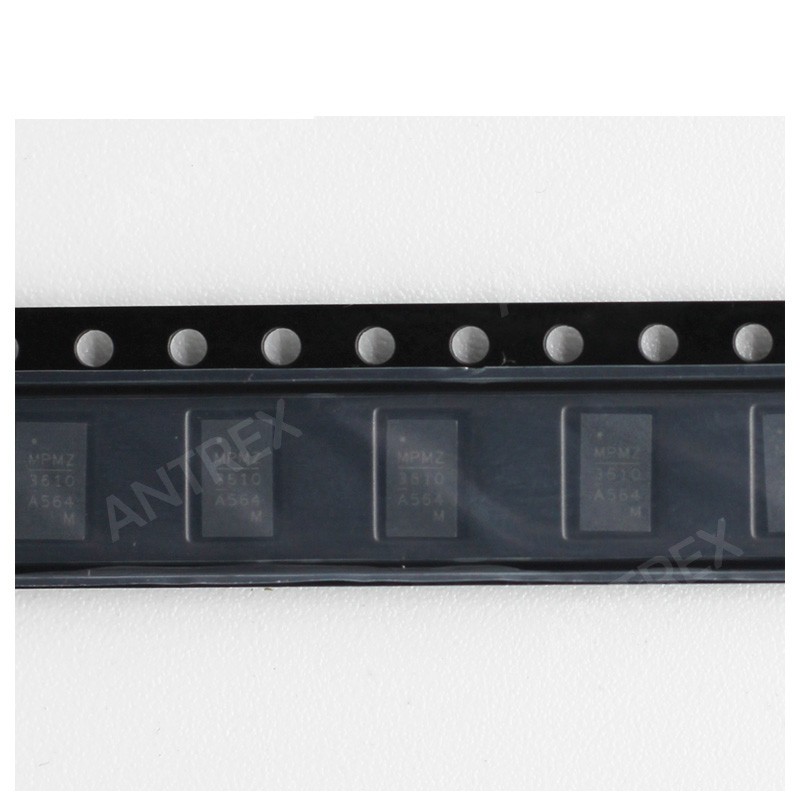

The Monolithic Power Systems Inc. MPM3610AGQV-P is a surface-mount, non-isolated PoL module DC-DC converter with one output. It accepts an input voltage from 4.5V to 21V and provides a single output voltage range from 0.8V to 18.48V at up to 1.2A. The device is supplied in a 20-PowerLFQFN module measuring 5.0mm x 3.0mm x 1.6mm and includes OCP, OTP, UVLO, and an active-high enable. Its specified operating temperature range is -40°C to 125°C, and .

Key Features

• Non-isolated PoL module with one output.
• Input voltage range of 4.5V to 21V.
• Output voltage range of 0.8V to 18.48V at up to 1.2A.
• Includes OCP, OTP, UVLO, and active-high enable.
• Surface-mount 20-PowerLFQFN module, 5.0mm x 3.0mm x 1.6mm.
• Operating temperature range of -40°C to 125°C.
• Supplier device package is 20-QFN (3x5).

Applications

• Commercial information technology equipment requiring a single non-isolated PoL output.
• Power conversion from a 4.5V to 21V input to a 0.8V to 18.48V output.
• Systems using an active-high enable for controlled power sequencing.

Design & Procurement Notes

Designers should verify that the available input voltage remains within 4.5V to 21V and that the required output current does not exceed 1.2A. The 0.8V to 18.48V output range supports single-rail PoL conversion, while OCP, OTP, UVLO, and active-high enable can be considered in protection and power-up control design. The 20-PowerLFQFN module and surface-mount package affect PCB layout and thermal management, and the -40°C to 125°C operating range should be checked against the intended environment. The 20-QFN (3x5) supplier device package should be considered during footprint selection.
