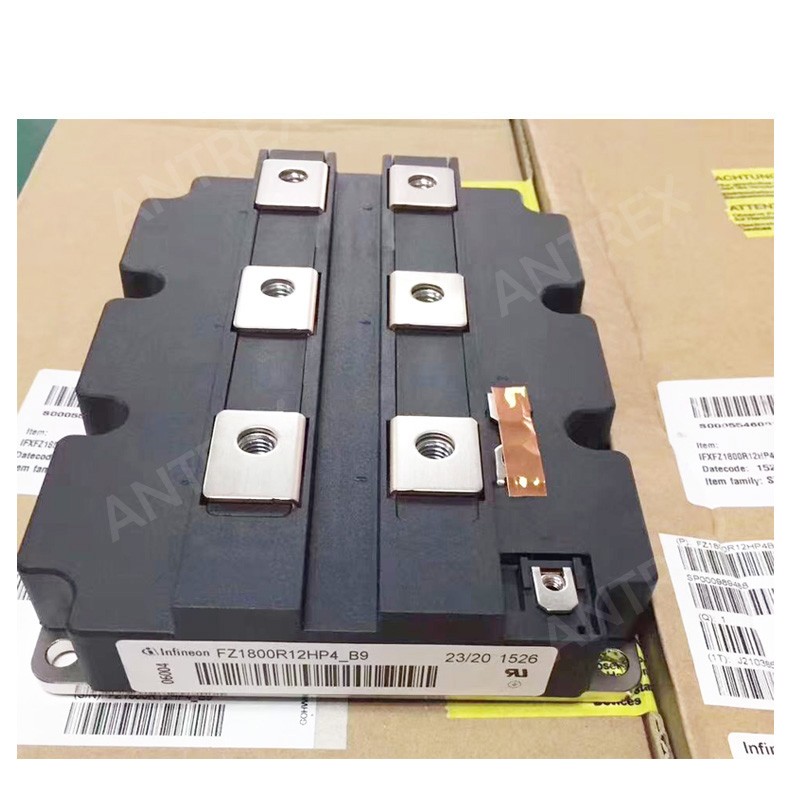

FZ1800R12HP4_B9

Product Overview

FZ1800R12HP4_B9 is an Infineon Technologies high-power single-switch IGBT module designed for demanding industrial power conversion applications. It utilizes soft-switching Trench IGBT4 technology and features a high-current 1200V rating with 1800A continuous collector current capability. The module is housed in an IHM B package with a high insulation design, providing excellent thermal performance, high power density and reliable operation for high-power converters, industrial motor drives and renewable energy systems.

Key Features

• Manufacturer: Infineon Technologies

• Part Number: FZ1800R12HP4_B9

• Product Type: High Power IGBT Module

• Configuration: Single Switch IGBT with Anti-Parallel Diode

• Technology: Soft-Switching Trench IGBT4

• Collector-Emitter Voltage (VCES): 1200V

• Continuous Collector Current (IC): 1800A

• Repetitive Peak Collector Current (ICRM): 3600A

• Collector-Emitter Saturation Voltage (VCE(sat)): 1.7V typical

• Diode Forward Voltage (VF): 1.8V typical

• Gate-Emitter Voltage (VGES): ±20V

• Operating Junction Temperature: Extended operation temperature range

• Package Type: IHM B

• Package Code: AG-IHMB190

• Package Dimensions: 190mm × 140mm

• Base Plate Material: High-performance thermal base plate

• Isolation Voltage: 4kV AC for 1 minute

• Insulation Design: CTI > 400 high insulation housing

• Mounting Type: Screw mounting

• Cooling Method: Heatsink / liquid cooling system

• Switching Performance: Soft switching with reduced losses

• Qualification: Industrial grade

• Packaging: Tray

• Compliance: RoHS compliant

• Features: Ultra-high current capability, high reliability, low switching losses and excellent thermal cycling performance

Applications

FZ1800R12HP4_B9 is designed for high-power industrial converter systems requiring extremely high current handling capability. Typical applications include high-power converters, industrial motor drives, wind turbine converters, renewable energy systems, traction power systems, large UPS equipment and high-current inverter applications.

Quality & Sourcing

Antrex Electronics can support FZ1800R12HP4_B9 sourcing with stock availability checks, RFQ quotation, package confirmation, date code review and shipment arrangement. For high-power semiconductor projects, buyers can provide quantity, target price, required date code, packaging requirements and application details for faster quotation support.

For quality control, Antrex Electronics can help arrange product photos, marking verification, visual inspection and third-party testing support when required. OEMs, power converter manufacturers, renewable energy suppliers and industrial equipment buyers are welcome to send BOM lists or hard-to-find IGBT module requirements for sourcing assistance.
