MAX14727EWV+T

Product Overview

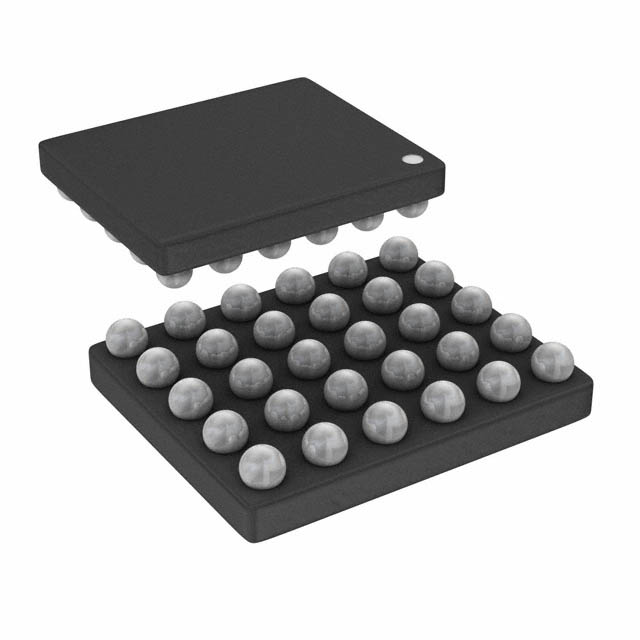

The MAX14727EWV+T from Analog Devices Inc./Maxim Integrated is a surface-mount power management IC intended for overvoltage protection applications. It uses a 30-WLP/WFBGA package with a 2.54 x 2.2 footprint, supporting compact board layouts. The device operates from a 3 V to 28 V supply and has a supply current of 360 µA. Its operating temperature range is -40°C to 85°C, making it suitable for electronic assemblies where space is constrained and surface-mount construction is preferred.

Key Features

• Overvoltage protection function in a specialized power management IC.
• Supply voltage range of 3 V to 28 V.
• Supply current of 360 µA.
• Operating temperature range of -40°C to 85°C.
• Surface-mount construction in a 30-WLP/WFBGA package.
• 30-WLP package with 2.54 x 2.2 dimensions.

Applications

• Overvoltage protection on supply rails.
• Compact surface-mount protection circuitry in space-limited assemblies.
• Specialized power management protection in systems operating from 3 V to 28 V.

Design & Procurement Notes

Designers should verify the 3 V to 28 V supply range, 360 µA supply current, and -40°C to 85°C operating temperature against the target system. The 30-WLP/WFBGA package with 2.54 x 2.2 dimensions requires surface-mount assembly and an appropriate land pattern. When planning the board layout, allow adequate clearance around the package and verify that the chosen mounting process matches the 30-WLP/WFBGA footprint. Because the device is intended for overvoltage protection, confirm that the required protection behavior, package footprint, and electrical limits align with the intended power management architecture.
