MAX11836EWA+T

Product Overview

Designed around a dedicated embedded-control role, MAX11836EWA+T is a Maxim MAX11836 application-specific controller from the Analog Devices / Maxim Integrated product lineage. Its full ordering code matters because silicon option, memory, package, temperature grade and shipment format may change across closely related suffixes.

The parameters below are limited to information located for this exact part or its directly matching base device. Values not reliably exposed in public documentation—especially for customer-programmed TrueTouch, Broadcom and legacy controller variants—are intentionally not inferred from a neighboring suffix.

Qualification of MAX11836EWA+T should compare the complete electrical and functional design: processor architecture, memory model, clock source, reset and start-up behavior, supply rails, interface levels, package pinout, programmed content and supported development tools. For legacy or application-specific silicon, an apparently similar controller may not accept the same firmware or reproduce cycle-level timing. Preserve the original binary, configuration data and board test procedure before approving a replacement.

Key Features

• Full part number: MAX11836EWA+T
• Manufacturer / historical brand: Analog Devices / Maxim Integrated
• Device type: Maxim MAX11836 application-specific controller
• TacTouch haptic actuator and touch-control function

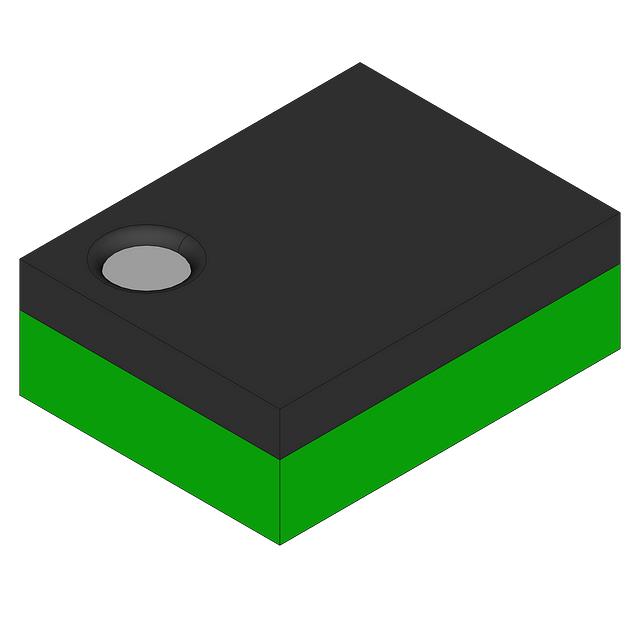

• 25-ball wafer-level package ordering
• Exact actuator drive, touch interface and programmed behavior require the archived Maxim data sheet
• Shipping suffix indicates tape-and-reel on families where the manufacturer defines T as the reel option; verify reel quantity separately

Applications

• Haptic touch interfaces and tactile-feedback controls
• Portable or consumer products using the matching TacTouch implementation

Application suitability should be confirmed against the original system requirements, including interface role, firmware revision, environmental range, package assembly process and any programmed or calibrated data. These examples describe realistic uses of the researched device family; they do not imply that every ordering suffix includes every optional peripheral or qualification grade.

Quality & Sourcing

Antrex Electronics can support sourcing review for MAX11836EWA+T, including verification of the complete ordering suffix, package, date code, packaging form and visible marking. Buyers should state the required quantity and whether blank, factory-programmed or customer-programmed material is acceptable. For programmable, secure or touch-controller devices, the firmware image, security provisioning state and customer option code can be as important as the silicon itself; Antrex Electronics does not assume that blank stock will reproduce an installed part. For obsolete or long-stored material, photos, label review, traceability checks, lead or ball inspection, solderability assessment and third-party electrical or X-ray testing can be arranged when project risk warrants them. Availability, date code and test scope remain subject to quotation and inspection.
