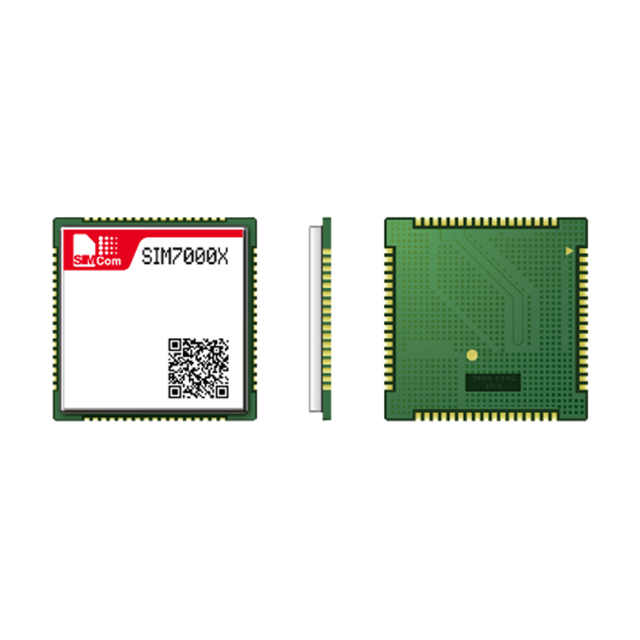

SIM7000A
SIM7000A is an LTE Cat-M1/NB-IoT wireless communication module with integrated GNSS for IoT and M2M applications
- 製品カテゴリ
- GPS/GNSSモジュール
- パッケージ
- BGA
- 在庫
- 1,500 pcs
- 供給状況
- 現在の数量は確認が必要です。
製品属性
| メーカー | SIMCom Wireless Solutions Limited |
|---|---|
| 製品カテゴリ | GPS/GNSSモジュール |
| Applications | Smart Metering, Asset Tracking, Remote Monitoring, Smart City, Industrial IoT, Telematics |
| Data Rate | Up to 375 kbps (Downlink/Uplink) |
| Fallback Network | GSM/GPRS/EDGE (Region Dependent) |
| Firmware Upgrade | FOTA Supported |
| Frequency Bands | LTE B2, B4, B12, B13, GSM 850/1900MHz (SIM7000A Variant) |
| GNSS Support | GPS, GLONASS, BeiDou |
| Interface | UART, USB 2.0, GPIO, I²C, ADC, PCM, SIM Interface |
| LTE Category | Cat-M1 |
| Mounting Type | Surface Mount |
| Network Technology | LTE Cat-M1 (eMTC), NB-IoT |
| Operating Temperature | -40°C to +85°C |
| Package Size | 24 × 24 × 2.6 mm |
| Package Type | LCC |
| Power Saving Features | PSM, eDRX |
| Protocol Support | TCP/IP, UDP, HTTP, HTTPS, MQTT, SSL/TLS |
| RoHS Status | ROHS compliant |
| Supply Voltage | 3.0V to 4.3V (3.8V Typical) |
| データシート | データシートを依頼 |
調達概要
SIM7000A の主要な供給・購買情報です。
Antrex Electronicsを選ぶ理由
確認済みの調達、検査、国際調達要件に対して独立系ディストリビューションのサポートを提供します。
独立系ディストリビューションサポート
生産および調達要件に対応し、供給不足品、製造中止品、入手困難な電子部品の調達を支援します。
トレーサビリティ確認
注文確定前に、ラベル、ロット、デートコード、および利用可能なサプライチェーン書類を確認できます。
検査・試験
必要に応じて、外観検査、X線検査、第三者試験のサポートを手配できます。
グローバル調達サポート
OEM、EMS、ディストリビューターの国際調達要件に対応し、単品部品からBOM案件までサポートします。
認証・検証サポート
電子部品調達向けに品質管理、トレーサビリティ確認、検査サポートを提供します。
SIM7000A の詳細説明
Product Overview
SIM7000A is a SIMCom Wireless Solutions LTE Cat-M1 (eMTC) cellular communication module designed for low-power IoT and M2M applications. The module supports LTE-FDD Cat-M1 connectivity with integrated GNSS positioning capability and provides rich interfaces including UART, USB 2.0, GPIO, I²C and SPI. With a compact LCC package, low power consumption features such as PSM and eDRX, and compatibility with SIM900/SIM800F module footprints, SIM7000A is suitable for asset tracking, smart metering, remote monitoring, wearable devices and industrial IoT applications.
Key Features
Manufacturer: SIMCom Wireless Solutions
Part Number: SIM7000A
Device Type: LTE Cellular Communication Module
Product Category: Wireless Communication / IoT Module
Network Technology: LTE Cat-M1 (eMTC)
Cellular Standard: 3GPP LTE Release compatible
LTE Bands: Supports multiple LTE-FDD bands including B2, B4, B12 and B13 depending on carrier configuration
GNSS Function: Integrated GNSS receiver support
Data Rate: Up to 375kbps LTE Cat-M1 data transmission
Interfaces: UART, USB 2.0, GPIO, I²C and SPI
Protocol Support: TCP/IP, SSL, HTTP, MQTT and other IoT protocols
Low Power Features: Power Saving Mode (PSM) and Extended Discontinuous Reception (eDRX)
Supply Voltage: Approximately 3.0V to 4.3V
Operating Voltage: 3.8V typical
Module Size: 24mm × 24mm × 2.6mm
Package Type: LCC surface-mount module
SIM Interface: External SIM card interface support
Antenna Interface: Cellular antenna and GNSS antenna support
Temperature Range: -40°C to +85°C class
Compatibility: AT command compatibility with SIM900/SIM800F series
Typical Use: IoT terminals, tracking devices, smart meters, remote monitoring and industrial communication equipment
Ordering / Packaging Note: SIM7000A buyers should verify carrier frequency support, firmware version, antenna requirements, module revision and regional certification requirements before production use.
Applications
SIM7000A is designed for low-power wide-area IoT applications requiring reliable cellular connectivity. Typical applications include asset tracking systems, smart energy meters, environmental monitoring devices, industrial IoT gateways, healthcare monitoring equipment, POS terminals, wearable devices and remote control systems. The integrated GNSS capability makes it suitable for location-based applications such as fleet tracking and logistics monitoring.
Quality & Sourcing
Antrex Electronics can support SIM7000A sourcing with stock availability checks, RFQ quotation, module version confirmation, date code review and shipment arrangement. For project-based purchasing, buyers can provide quantity, target price, required firmware version, carrier requirements, packaging requirements and application information for faster quotation support.
For quality control, Antrex Electronics can help arrange product photos, label review, visual inspection and third-party testing support when required. OEMs, EMS providers, repair centers and electronic component buyers are welcome to send BOM lists or hard-to-find part requests for sourcing assistance.
