CYISM530AZXC

Product Overview

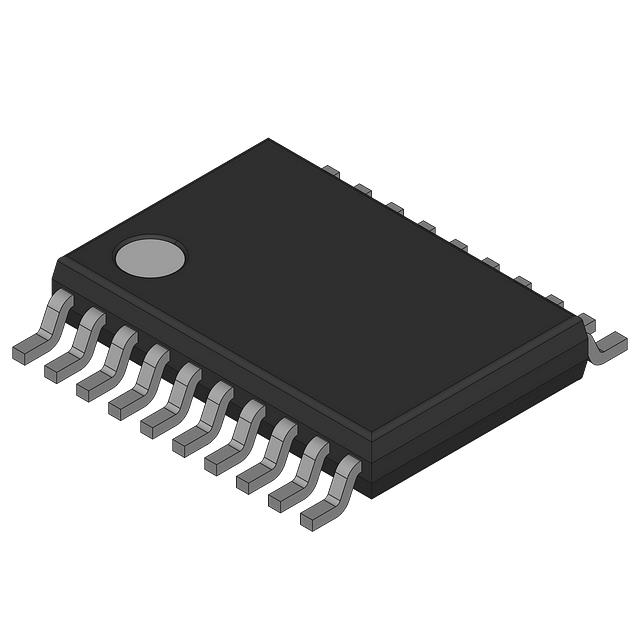

The CYISM530AZXC is a Cypress Semiconductor Corp integrated circuit intended for clock generation and timing functions. It is an EMI-related clock generator in a surface-mount 20-TSSOP package with a 0.173 in, 4.40 mm body width. The part is positioned within the broader clock and timing family that covers clock generators, PLLs, and frequency synthesizers. For circuit designers, the device provides a surface-mount clock generation component in a narrow-body package. Pinout, output configuration, timing settings, and PCB layout should be confirmed against the manufacturer technical documentation before use.

Key Features

• Manufacturer part number CYISM530AZXC from Cypress Semiconductor Corp.
• Clock generator integrated circuit for timing applications.
• EMI-related clocking functionality.
• Surface-mount package for PCB assembly.
• 20-TSSOP package with 0.173 in, 4.40 mm width.

Applications

• Clock distribution subsystems in digital boards where a dedicated clock generator IC is required.
• Embedded and logic-based designs that need timing generation in a 20-TSSOP surface-mount package.
• EMI-sensitive clocking contexts where the part is an EMI-related clock generator.

Design & Procurement Notes

Design and procurement should focus on the package and mounting information: the CYISM530AZXC is a 20-TSSOP, 0.173 in, 4.40 mm wide surface-mount IC, so PCB land pattern and board space should match the package. Because the device is in the clock generator, PLL, and frequency synthesizer area, designers should confirm the exact timing configuration and layout from Cypress Semiconductor Corp documentation. The part number should be used exactly when ordering to avoid confusion with other CYISM or 20-TSSOP timing devices.
